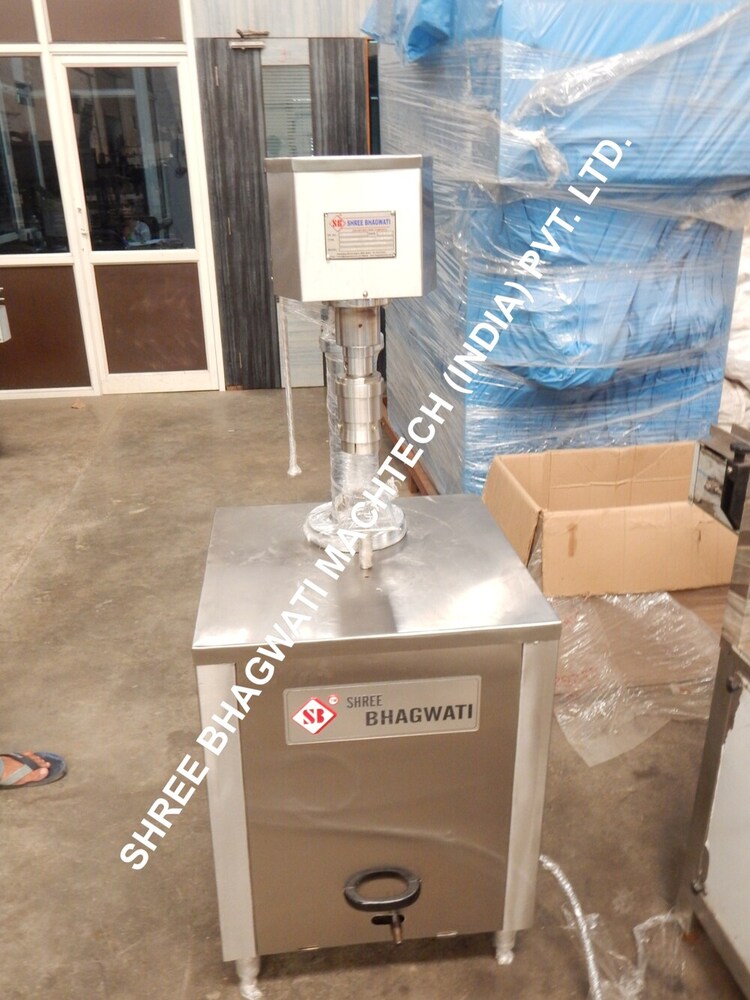

SEMI AUTOMATIC SINGLE HEAD LUG CAPPING MACHINE

Price 200000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

SEMI AUTOMATIC SINGLE HEAD LUG CAPPING MACHINE Specification

Type
Filling Machine

Material
Stainless steel

Auxiliary Packaging Machine Type
Other

Capacity
As per the client required Kg/hr

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Frequency Speed Control

Drive Type
Electric

Power
As per the client required Watt (w)

Voltage
As per the client required Watt (w)

Warranty
1 year

SEMI AUTOMATIC SINGLE HEAD LUG CAPPING MACHINE Trade Information

Minimum Order Quantity
1 Unit

FOB Port
India

Supply Ability
30 Units Per Week

Delivery Time
4-6 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden packing Only

Main Export Market(s)
Western Europe, Middle East, Africa, Central America, Eastern Europe, South America, Asia, North America, Australia

Main Domestic Market
All India

Certifications
ISO and CE Certified

About SEMI AUTOMATIC SINGLE HEAD LUG CAPPING MACHINE

Operation

Require manually feeding & unloading container, where the body and the neck of the container are positioned below the rotating head and sealing head is performing perfect operation of capping with uniform torque.

Technical Specification

Model	SBSC-40L GMP Model
Output	Up to 05 to 08 BPM Depend on bottle & cap size
No. of sealing head	1 Nos.
Electrical Motor	1 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine
Overall Dimension	1000 mm (L) x 720 mm (W) x 1400 (H) Approx.
Case Dimension	1200 mm (L) x 950 mm (W) x 1600 (H) Approx.
Net Weight	200 Kgs. Approx.
Gross Weight	350 Kgs. Approx.
Change parts required	Cap Die if cap diameter change.

Efficient and Versatile Lidding Solution

This semi-automatic lug capping machine is ideal for businesses seeking a flexible yet robust way to seal containers. With customizable power and voltage, it easily integrates into various production setups. Its stainless steel build ensures longevity, while the frequency speed control delivers consistent performance for a range of cap sizes and container types.

User-Centric Control and Operation

The non-computerized frequency speed control system offers users straightforward command over speed and capping pressure. Operators can adjust settings to suit specific product requirements, streamlining workflow and reducing operational complexity without sacrificing output quality or reliability.

FAQs of SEMI AUTOMATIC SINGLE HEAD LUG CAPPING MACHINE:

Q: How does the semi-automatic single head lug capping machine operate?

A: The operator manually places the cap onto the container and initiates the capping process. The machine then securely tightens the lug cap using its frequency speed control system, allowing precise regulation of capping speed and pressure.

Q: What types of containers or caps are compatible with this machine?

A: This machine is designed for lug caps and is suitable for various container sizes made of glass, plastic, or metal. Its single head mechanism offers reliable sealing for jars and bottles commonly used in the food, beverage, and pharmaceutical industries.

Q: When do maintenance checks need to be performed on this machine?

A: Routine maintenance, such as lubrication, inspection for wear on moving parts, and checking the electrical system, is recommended every few months or according to usage frequency. The machine comes with a 1-year warranty covering manufacturing defects, further ensuring peace of mind.

Q: Where can this capping machine be installed or used?

A: It is suitable for manufacturing plants, packaging facilities, and export businesses in India. The compact design and semi-automatic operation make it adaptable for both small and large-scale production environments.

Q: What is the process for customizing the machines power, voltage, or capacity?

A: Clients can specify their preferred electrical specifications and throughput requirements during the ordering process. The manufacturer adjusts the machines power and voltage parameters and configures the production capacity to match the clients needs.

Q: How does usage of this machine benefit the production line?

A: This machine increases operational efficiency by providing consistent capping quality, reducing labor intensity, and minimizing downtime. Its semi-automatic system balances productivity with cost-effectiveness, especially for facilities transitioning to automated processes.

Q: What are the primary advantages of the non-computerized control system?

A: The frequency speed control system simplifies operation and minimizes technical complications. Easy-to-use settings enable operators to make quick adjustments, ensuring reliable and adaptable performance in dynamic production environments.
