Automatic Liquid Packing Machinery

The Round Container is transferred on the moving conveyor from the inbuilt Unscrambler and positioned accurately by a Feed Worm for correct spacing between two containers for wrap round operation at the labelling point. The rotating Glue Cylinder receives cold glue from the Glue pot which subsequently gets transferred on to the Glue Rubber Roller. Finally a fine, even and thin film of glue is transferred on to the Gluing Pad. The round container on the moving conveyor at the feed worm accurate sequences switch which results in the oscillation of the label box. The rotating gluing pad which is aligned with oscillating label box picks up only one label each time. The pick-up cylinder receives labels with help of pick-up fingers from the gluing pad. The pick-up cylinder holds The Labels Perfectly due to vacuum during its rotational movement. Simultaneously the pick-up fingers move inside. The round container which is positioned by the FEED WORM at the labelling point is now wrapped around with the glue label when the round container rotates by virtue of strip belt of the PICK-UP CYLINDER. Finally the moving container further passes through a rubber PRESSING BELT which ensures neat and perfect fixing of the label.

The Shree Bhagwati Automatic air jet cleaning Machine, which is made compact, versatile and enclosed in stainless steel elegantly matt finish body.

The Machine offered consists of the following assemblies :- 4 meters stainless steel conveyor. SS 316 Hopper 200 liters.

The Linear oil filling line is stainless steel, very versatile and fully automatic. This machine is suitable for collecting to finished products Line.

This Liquid filling machine adopts the PLC and the weighing feedback system that makes a higher filling precision. All operations complete on the touching screen. It is reliable, stable, widely used for 5 LTR to 30 LTR oil and other liquid filling.

This filling machine adopts the PLC and the weighing feedback system that makes a higher filling precision. All operations complete on the touching screen. It is reliable, stable, widely used for 20 LTR. oil filling.

The Shree Bhagwatiïs Automatic Volumetric liquid syrup filling machine, which is made compact, versatile and enclosed in stainless steel elegantly matt finish body. This unit works on volumetric principal and reciprocating self-centring device.

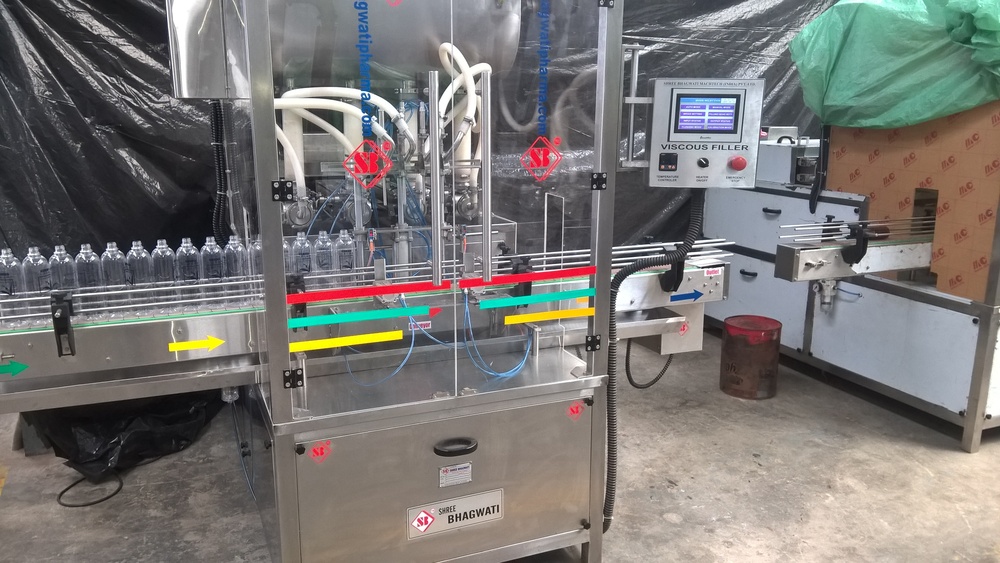

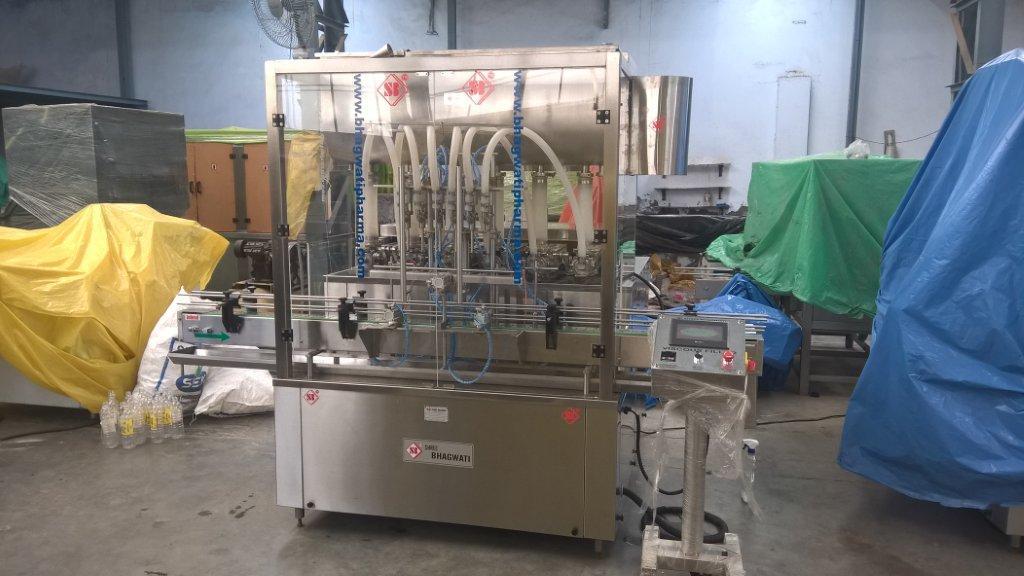

This machine is specially made for all kinds of viscosity materials, such as chocolate pasteïïpeanut butter, honey, butter, Mayonnaise, ketchup etc. All the contacted part with the chemical oil is high quality stainless steel.. The machine adopts piston pump for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision.

Gravity filling system is simplest and efficient filling system for non carbonated liquids, like vacuum filters, these fillers also maintain same level while filling particular size adjustment and fill by gravity principle. It is used for filling only non carbonated liquids.

Automatic Peristaltic Pump Base Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine works on VOLUME=TIME TECHNOLOGY AND SPEED=FLOW RATE. The unit is made compact, versatile and S.S. body. No container No filling system arrangement is standard features of the machine. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.

Automatic Corrosive Liquid Filling Machine control system-This filling machine adopts Mitsubishi PLC control system, random minitrim filling measurement

Automatic BALM Filling Machine works on volumetric principle with rotary valve type piston. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, of S.S Slat Conveyor, with self-cantering devices & Stainless Steel Piston. The main drive of the machine and conveyor drive consist of A/C Motor with synchronized variable A/C Frequency drive.

The Bhagwati Automatic Volumetric filling machine, which is made compact, versatile and enclosed in stainless steel elegantly matt finish body. This unit works on volumetric principal and reciprocating self-centring device.

High Speed Oil Filling machine
