High Speed Vertical Sticker Labelling Machine

Price 900000 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

High Speed Vertical Sticker Labelling Machine Specification

Material
SS

Computerized
No

Automatic Grade
Automatic

Control System
Human Machine Interface

Drive Type
Electric

Power Source
Electric

Feature
High Performance, ECO Friendly

Warranty
1 year

High Speed Vertical Sticker Labelling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
30 Pieces Per Month

Delivery Time
6 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden Packing Only

Main Domestic Market
All India

Certifications
CE & ISO Certified

About High Speed Vertical Sticker Labelling Machine

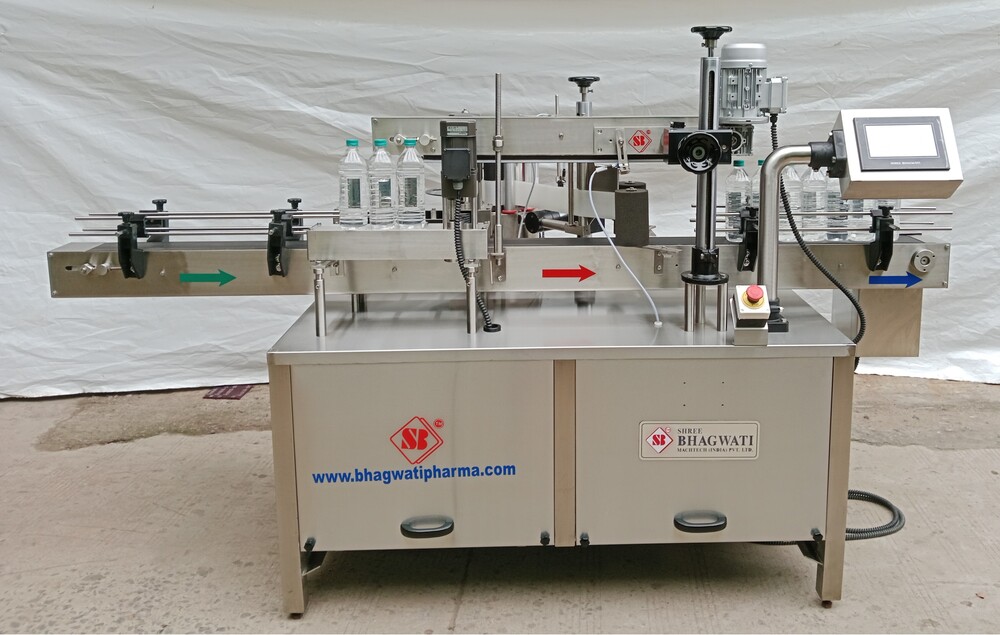

Vertical Sticker Labelling Machine

The SHREE BHAGWATIs Automatic Vertical High Speed Sticker Labelling Machine Model SBSL-150-B, is one of the most user friendly. The Machine incorporates latest sophisticated Micro Processor Control Label Dispensing system with user friendly Sensing system for Label and Product. The Machine is suitable for La belling on Round Bottle, Jars and other round objects. It is capable of La belling up to 150 Products per minute depending on products diameter and label size. Machine is suited for Glass, Plastic, Aluminum, PET bottles / jars of Pharmaceuticals, Mineral Water, Food Products and Pesticides having bigger Label Height and Length.

The SHREE BHAGWATI Sticker Labelling Machine SBSL-150-B has its own unique single point synchronized speed control system. The Inbuilt Automated Label Length detection systems eliminates any need for manually feeding and storing of Label Length data in memory and retrieving the same every time for change of Label Size & re-starting the machine. The System thus saves valuable time, avoiding machine-down time, and helps achieve higher production. Machine can be supplied with Optional Toughened (Tampered) Glass or Acrylic Safety Cabinet. Machines having required all basic features as a standard fitment to match the current market needs and also saves cost and time. or
Built-In Unique Features

No Label Data Input/retrievals require for any Label Size.
No Change Parts for Product and Label size.
Synchronized speed of Label Dispensing, Conveyor and Pressing Device.
Virtually Maintenance free machine.
Easy to change label application height.
User Friendly Label Placing Adjustments.
Suitable for On-Line InkJet and Contact Coding System.
Suitable for Partial, Full Wrap Around and Overlap Labelling.
Built In A.C. Variable Frequency Drive System.
Fully Stainless Steel finish Machine

Technical Specification

Model No.	SBSL-150-B
Label Height	8 mm to 90/120/150 / 250 mm Standard*
Label Length	12 mm Minimum
Label Roll Dia.	400 mm
Core Dia.	75/76 mm
Gap Between two Labels	appx. 3 mm
Product Diameter	15 mm to 90 mm*
Electrical	220 VAC Single Phase Power Supply (50/60 Hz)
Power	1.5 Amp.
Capacity	0.75 Kw
Speed	Up to 150 Labels per minute depending on Product and Label Size
Conveyor height	830-950 mm* ( Adjustable)
Overall dimension	1900 mm(L) X 1050 mm(W) X 1425 mm (H)
Machine Direction n of Movement	Left to Right from operator side

Optimized for Speed and Accuracy

This sticker labelling machine delivers high-speed operation, applying labels efficiently across a wide range of products. With automated processes and advanced control interfaces, it minimizes downtime and maximizes throughput, ensuring each label is precisely positioned for reliable presentation.

Durable Stainless Steel Construction

Built from premium-quality stainless steel (SS), the machine offers enhanced durability and resistance to corrosion. Its sturdy framework is ideal for demanding production environments, ensuring a long lifespan and consistent operation, even under intensive use.

Eco-Friendly and User-Focused Design

The machine is crafted to balance high performance with eco-friendly efficiency. Operators benefit from its user-friendly HMI or PLC control systems, making setup and adjustments intuitive while reducing operational errors and optimizing resource usage.

FAQs of High Speed Vertical Sticker Labelling Machine:

Q: How does a High Speed Vertical Sticker Labelling Machine improve production efficiency?

A: This machine automates the label application process, operating at speeds up to 300 Kg/h. Its high throughput and accurate placement help streamline workflows, minimize manual labor, and reduce errors, resulting in faster product labelling and increased overall productivity.

Q: What type of materials can the machine handle during operation?

A: Manufactured with a robust stainless steel (SS) frame, the labelling machine is designed to handle a variety of product surfaces commonly encountered in packaging, ensuring versatility across industries such as food, pharmaceuticals, and consumer goods.

Q: When is preventive maintenance recommended for this sticker labelling machine?

A: Routine maintenance is suggested every few months or after continuous high-volume usage to ensure smooth operation and to preserve the integrity of its moving components. The 1-year warranty also provides support for repairs during the initial year of use.

Q: Where can this High Speed Vertical Sticker Labelling Machine be installed?

A: It is suitable for installation in production facilities, packaging plants, and manufacturing units throughout India. The compact, vertical design allows for flexible placement within diverse industrial setups.

Q: What is the process for setting the voltage requirement for this machine?

A: The machines voltage can be customized according to the customers requirements at the time of purchase. This ensures compatibility with your facilitys electrical standards and safe, consistent performance.

Q: Is computerized control necessary for operating this machine?

A: No, it primarily features Human Machine Interface or PLC-based controls, which are designed for straightforward manual or semi-automated operation without the need for full computerization, although a computerized version is available if required.

Q: What are the main benefits of using an automatic sticker labelling machine in packaging operations?

A: Key advantages include improved labelling speed, accuracy, reduced labor costs, consistent product presentation, eco-friendly performance, and reliability thanks to its stainless steel build and modern control systems.
