Single Head Bottle Screw Capping Machine

Price 375000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Single Head Bottle Screw Capping Machine Specification

General Use
Industrial

Material
Stainless Steel Alloy

Computerized
No

Automatic
Yes

Control System
Human Machine Interface

Surface Treatment
Polishing

Voltage
110-215 Volt (v)

Feature
ECO Friendly

Color
Silver

Single Head Bottle Screw Capping Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
30 Pieces Per Month

Delivery Time
4-6 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
wooden packing

Main Domestic Market
All India

Certifications
CE & ISO Certified

About Single Head Bottle Screw Capping Machine

Single Head Bottle Screw Capping Machine

Description:

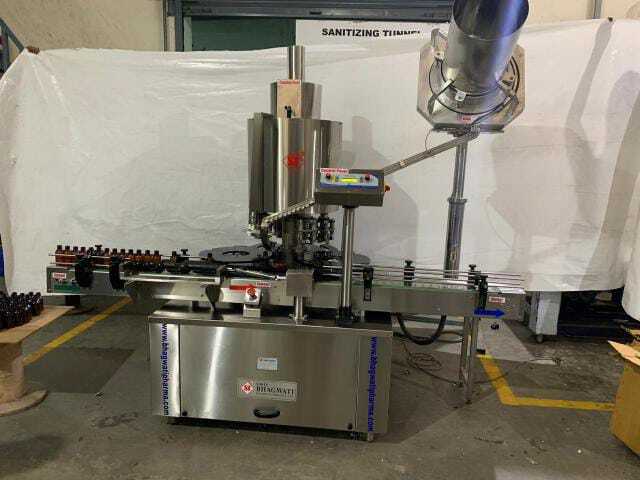

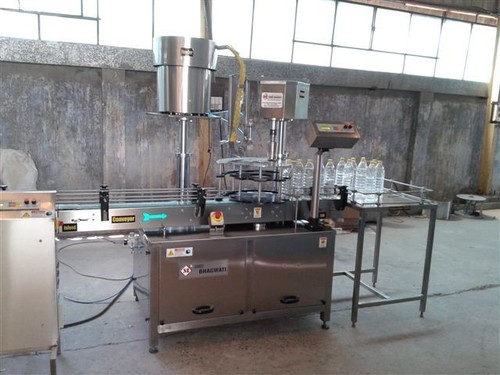

BHAGWATI Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.

Operation : Screw Capping Machine

The feed container moving on conveyor belt are feed into an in-feed star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the rotating head pickup a cap from the cap star wheel which is receiving from delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of sealing, rotating head is design to seal container according to pre-set torque.

Technical Specification : Screw Capping Machine

Model		SBCS-50
Output / Hour*		1000 to 3000 bottles.
Direction of Movement		Left to Right
No. of Sealing Head		1 Nos.
Electrical Specification	Main Motor	1.0 HP / 415 Volts / 50 Hz
	Cap Feeding Bowl	300 Watt.
Height of Conveyor		860 mm to 910 mm

Depends on bottle size, cap size and type of cap.
We can supply as per customer requirements.
With help of change parts.

Salient Features :

No container no cap arrangement.
Single motor synchronizes conveyor, star wheel, & platform turret.
Adjustable height of conveyor belt.
All contact parts are made out of stainless steel.
Pick & Place arrangement.
Torque adjustable.
Low noise level, low power consumptions.

Advanced Automation for Efficiency

This screw capping machine utilizes a sophisticated PLC control system and Human Machine Interface, allowing operators to manage settings effortlessly. Its fully automated functionality streamlines production, reduces manual labor, and boosts throughput, supporting industries that demand speed and consistency in bottle packaging.

Eco-Friendly and Durable Construction

Crafted from premium stainless steel alloy, this machine is built for durability while maintaining an eco-friendly operational profile. The polished surface provides corrosion resistance and easy cleaning, extending the machines operational life and contributing to sustainable industrial practices.

FAQs of Single Head Bottle Screw Capping Machine:

Q: How does the Single Head Bottle Screw Capping Machine operate in an industrial setting?

A: The machine autonomously screws caps onto bottles using an electric drive and PLC-controlled interface, ensuring precise application. Operators can adjust settings through the Human Machine Interface, making operation smooth and adaptable.

Q: What are the benefits of using a stainless steel alloy in the construction of this capping machine?

A: Stainless steel alloy offers excellent strength, corrosion resistance, and longevity, resulting in a robust machine suited for frequent industrial use. The polished finish further facilitates maintenance and hygiene.

Q: Where can this bottle capping machine be installed and utilized?

A: The machine is designed for industrial settings, including factories operated by distributors, exporters, manufacturers, and suppliers in India. Its voltage flexibility (110215V) allows installation in diverse production facilities.

Q: What is the warranty coverage for this machine?

A: A one-year warranty is provided, offering peace of mind to users. This covers manufacturing defects and ensures reliable post-purchase support from the manufacturer or supplier.

Q: How is the control system configured for user-friendly operation?

A: The machine integrates a Human Machine Interface with PLC control, allowing users to easily set, monitor, and adjust operational parameters. This system enhances accuracy and reduces training time for new operators.

Q: What is the process for capping bottles using this automatic machine?

A: Bottles are fed into the machine, where the system automatically positions each bottle and secures the cap using precise screwing mechanismsstreamlining production and minimizing errors.
