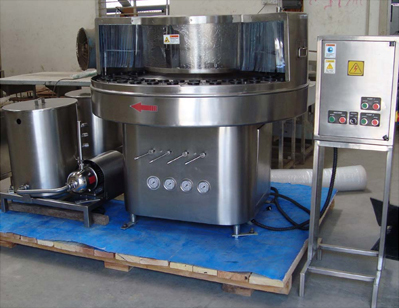

Rotary Bottle Washing Machine

Get a Price/Quote

About Rotary Bottle Washing Machine

Rotary Bottle Washing Machine.

Description :

The Bhagwati Rotary Bottle washing Machine is compact and highly efficient machine with elegant look. This multi functional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the Rotary principle with "GENEVA" mechanism and requires manual loading and unloading of bottles.

Operation :

The bottles are manual loaded and unload on rotating platform and are cleaned in series of operations. The bottles are hold in bottle holders that are specially designed to accommodate bottles with varying neck diameter and bottle diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings and sequence of various washing media to suit specific requirement.

Technical Details:

Model	SBLBW-100
Wash Cycle	First Wash : - 300 Ltrs/Hour Approx at 15 PSI. (Detergent Water).
	Second Wash : - Minimum Consumption as such, water loss during recirculation shall be compensated. (Steam/Hot Water).
	Third Wash : - 600 Ltrs/Hour Approx at 15 PSI. (D.M. or DL. Water)
	Fourth Wash : - 15 PSI (Air).
	Out Side Wash :- 800 Ltrs/Hour Approx at 15 PSI (Ordinary Water)
Electrical Motor	0.5HP/440 Volts/ 3Phase/ 50 Hz (Four wires) For Main Machine.
Electrical Motor	1 HP/440 Volts/ 3Phase/ 50 Hz (Four wires) For Water Pump.
Elec. Heater	3 KW. (For Hot Water)
Capacity	Up to 50 Bottle per Minute depend on neck size & bottle size
Container Size	25 mm to 100 mm, Maximum Height 280 mm
Containers Neck Size	20 mm to 38 mm, Maximum Height 280 mm (With the help of required change parts)
