Mini Tablet Press, Rotary Tablet Press Machine

Send Inquiry

Product Code : SBTP

Brand Name : shree bhagwati

Price And Quantity

Minimum Order Quantity
1
Unit of Measure
Piece/Pieces

Price Range
Price
2,00,000 to 20,00,000 INR

Product Specifications

Product Type
Other
Material
Stainless steel

Computerized
Yes
Automatic Grade
Automatic

Control System
PLC Control
Drive Type
Electric

Heating System
Other
Power Source
Electric

Voltage
As per customer requirement Watt/Volt ( w/v)
Capacity
8-45

Warranty
1 Year warranty

Product Description

Mini Tablet Press, Rotary Tablet Press Machine

Bhagwati Mini Press is a rotary tablet press machine with robust construction that is built as per the GMP derivatives. Mini Press is a state-of-art pharmaceutical equipment from Bhagwati Machines India Pvt. Ltd. and is ideal for small scale productions. Mini tablet press or lab tablet press is also used to avoid wastage, when high value ingredients are used for tablet formulation.

Trouble free operation, easy maintenance and low noise emission are the ideal features of our single rotary mini press machine.

Salient Features :

This rotary press is built as per the GMP directives with total robust construction. At the same time, the necessary care has been taken to have trouble free operation, easy to clean and very low noise level. This state-of-the-art equipment can also be used for small batch productions, thanks to its "D" & "B" tooling specification, like 6 Ton Pressure, maximum tablet diameter 22 mm etc. Which can be utilized for achieving the better output in its range.

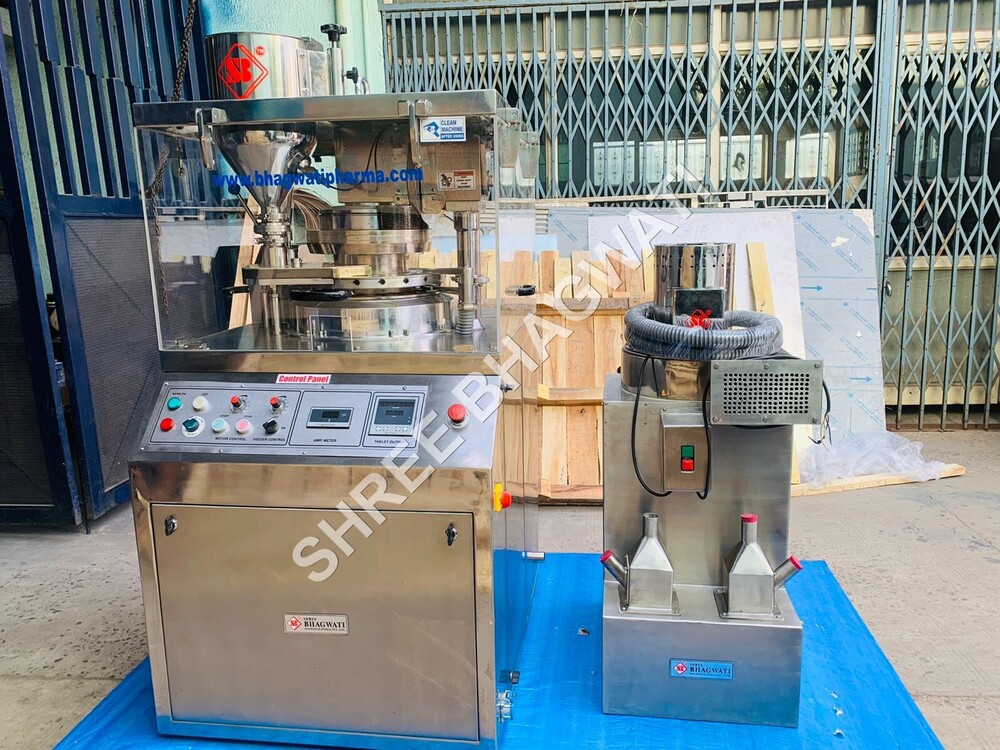

Square GMP Table Top Model
Centre drive fitted with Gear box
Paint free tablet manufacturing zone
Turret of Special Grade S.G. Iron casting

Standard Features :

Upper Punch penetreation.
Electronic digital Tablet cum RPM Counter
Inter lock Switches to all Guards
A.C. Variable Drive
Pre- Compression facitility
Lower Guard of polished Stainless Steel
Upper Guards of Acrylic Material
Stainless Steel Turrel Guards
Anti Vibrating mount
Imported needle roller bearing provided at the bottom of turret
Reverse direction motion protection is provided to avoid accident
Grease Nipples are provided for effective lubrication, where required

The machine is available with force feeding attachment (Optionally)

The machine is available with poly carbonate upper guards (Optionally)

The machine is available with PLC control (Optionally)

Technical Specification :

Mini Single Rotary Press Machine

Machine Type	Bhagwati-Mini-10 B	Bhagwati-Mini-8 D	Bhagwati-Mini-10 D
Number of Stations	10	8	10
Type of Tooling	B	D	D
Output - Tablets/Hr.	6,000 To 18,000	4,800 To 14,000	6,000 To 18,000
Turet RPM (Min. / Max)	10 - 30.	10 - 30.	10 - 30.
Max. Operating Pressure	6 Tons.	6 Tons.	6 Tons.
Max. Tablet Dia.	16 mm	22 mm	22 mm
Maximum Depth of fill	17.5 mm	20.5 mm	20.5 mm
Upper Punch Penetration	2 to 6 mm	2 to 6 mm	2 to 6 mm
Dia. of Die mm	30.1 mm	38.1 mm	38.1 mm
Length of Die mm	22.22 mm	23.71 mm	23.71 mm
Dia of Punch mm	18.99 mm	25.349 mm	25.349 mm
Length of Punch mm	133.65 mm	133.6 mm	133.6 mm
Power	2.0 HP X 1440 RPM X 415 V. X 50 Hz
Overall H X W X D (cm)	48 x 67 x 105 H
Net Weight (Approx)	350 kgs

Note : Specification and features of the machineries are subject to change without any prior notice
