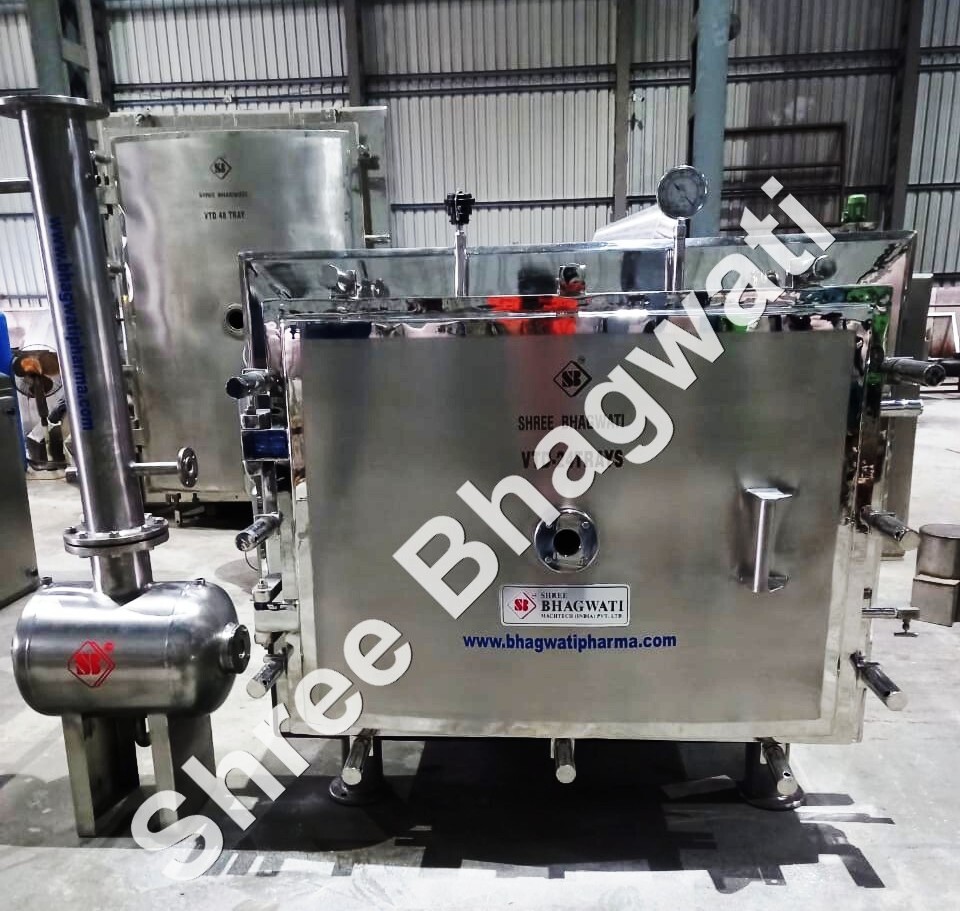

SS Vacuum Tray Dryer

About SS Vacuum Tray Dryer

Salient Features : Vacuum Tray Dryer

• Construction: External : 2MM THK Internal : 2MM THKMOC: cGMP
• Surface Finish : External:Buffed to 150 grit matt finish Internal: Buffed to 220 grit mirror finish.
• Inlet & Outlet: All dryers have a 5 micron pre filter r at the inlet and a manually infinite adjustable damper at the outlet.
• Door : Doors at provided at the front and / or rear side of the dryer. Door lips are lined with silicon ruuber gasket to preventany leakages. Suitable locking is provided for the doors.
• Air Circulation : Air circulation is done by specially designed recirculation blowers inside the dryer. The blower capacity , static & design depends on the size and model of dryer.
• Heating : Dryers are normally supplied with either steam / electric / thermic fluid / hot water heating system. Suitable heating coils / caloriefiers are provided in the dryers.
• Temperature Control : Temp control system is done by electronic digital temp controller fitted in the control panel. The temp control in the dryer is fully automatic.
• Trays : Trays are available in S.S. 304 / 316 q. All trays are fully die pressed and with cooved corners. Trays are buffed to mirror finish. Trays are also available in aluminium / Polypropelene / Frp / M.S. galvanized as per clients reqiuirement.
• Trolley : Trolley is provided in the dryers to accommodate trays in it. Trolley truck are used to load and unload the trays into the dryer.
• Control Panel : Automatic Control panel is fitted on the side of the dryer. If consists of Starters, contactors, safety relays, ckt breakers, indicating lamps, push buttons , timers, controllers etc.



Technical Specification : Vacuum Tray Dryer

Models	TD-12	TD-24	TD-48	TD-96	TD-192
Loading capacity	12 Trays	24 Trays	48 Trays	96 Trays	192 trays
External Dimensionin mm	W D H 1370 X 530 X 940	W D H 1370 X 940 X 940	W D H 1980 X1020 X1880	W D H 3320X1900 X1880	W D H 3320 X 1900 X 1880
Internal DimensionIn mm	840 X 430 X 840	840 X 860 X 840	1020 X930 X1830	1960 X930 X1830	1960 X930 X1830
No of Doors	One	One	One	Two	Two
No of Blowers	One	Two	One	Two	Four
No of motors / H.P.3 Phase 415 Volts.	1 / 0.5 H.P.3 phase 415 volts.	1 / 0.5 H.P.3 phase 415 volts	1 / 1 H.P.3 phase 415 volts	2 / 1 H.P.3 phase 415 volts	Four / 1 H.P.each3 phase 415 volts
ElectricalHeating Load for100C / 200C / 300C	3kw / 6kw / 9kw	6kw / 9kw / 12kw	9kw / 15kw / 18kw	15kw / 21kw / 27kw	36kw / 42kw / 48kw
Steam HeaterNo. of coils.	2	2	2	2	2
Steam Pressure	3.3 kg / cm2	3.3 kg / cm2	3.3 kg / cm2	3.3 kg / cm2	3.3 kg / cm2
Steam consumption	25 LBS / hr	45 LBS/hr	60 LBS / hr	80 LBS / hr	120 LBS / hr
Insulation in mm100C / 200C / 300C	50 / 75 / 75	50 / 75 / 75	50/75/75	50 / 75 / 75	50 / 75 / 75
No of Trolleys	Rack System	Rack System	One	Two	Four
Tray Size	812 X 406 X 31	812 X 406 X 31	812 X 406 X 31	812 X 406 X 31	812 X 406 X 31
Trolley Dimension	Fixed Racks	Fixed Racks	840 X 960 X 1780	840 X 960 X 1780	840 X 960 X 1780

Versatile and Efficient Drying Solution

The Tray Dryer is designed to handle a broad spectrum of industrial drying processes, featuring flexible tray capacity and voltage options. With automatic grade and PLC control, users benefit from uniform and consistent results, ensuring product quality meets stringent standards. Its electric-powered design further simplifies operation and reduces manual intervention.


Strong Stainless Steel Build for Longevity

Constructed from premium stainless steel, the Tray Dryer boasts excellent durability and resistance to corrosion, supporting extended, trouble-free usage. The solid structure maintains optimal performance even in demanding environments, while the refined silver finish adds a professional appeal to any facility.


Tailored to Industrial Applications

Purpose-built for industrial usage, the Tray Dryer integrates user-centric features like PLC automation, adjustable controls, and a good quality assurance system. Whether for large-scale processing or specialized applications, this equipment assures adaptability and efficiency for distributors, exporters, manufacturers, and suppliers in India.
