Linear Type Oil Filling Line

Get a Price/Quote

MOQ : 1 Piece

Linear Type Oil Filling Line Specification

Usage
Industrial

Features
Good Quality

Power Supply
Electric

Material
SS

Feature
Highly Efficient

Computerized
No

Automatic Grade
Automatic

Control System
Human Machine Interface

Drive Type
Electric

Color
Silver

Warranty
1 Year

Linear Type Oil Filling Line Trade Information

Minimum Order Quantity
1 Piece

FOB Port
India

Supply Ability
Piece

Delivery Time
6-8 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden Packing only

Main Domestic Market
All India

Certifications
ISO and CE Certified

About Linear Type Oil Filling Line

Bottle feeding table

This machine is suitable for many kinds of round bottle and square bottle, it adopts electric motor which drives the working flat whirl,so the bottle can follow the fixed orbit to the conveyor belt.This automatic ordering machine is mainly suitable for round or square bottle, is corollary equipment of automatic production line in common usage, to satisfying many kinds of bottle, if adjust, you need only adjust the position and height of baffle. The machine is equipped with step less governing frequency conversion.

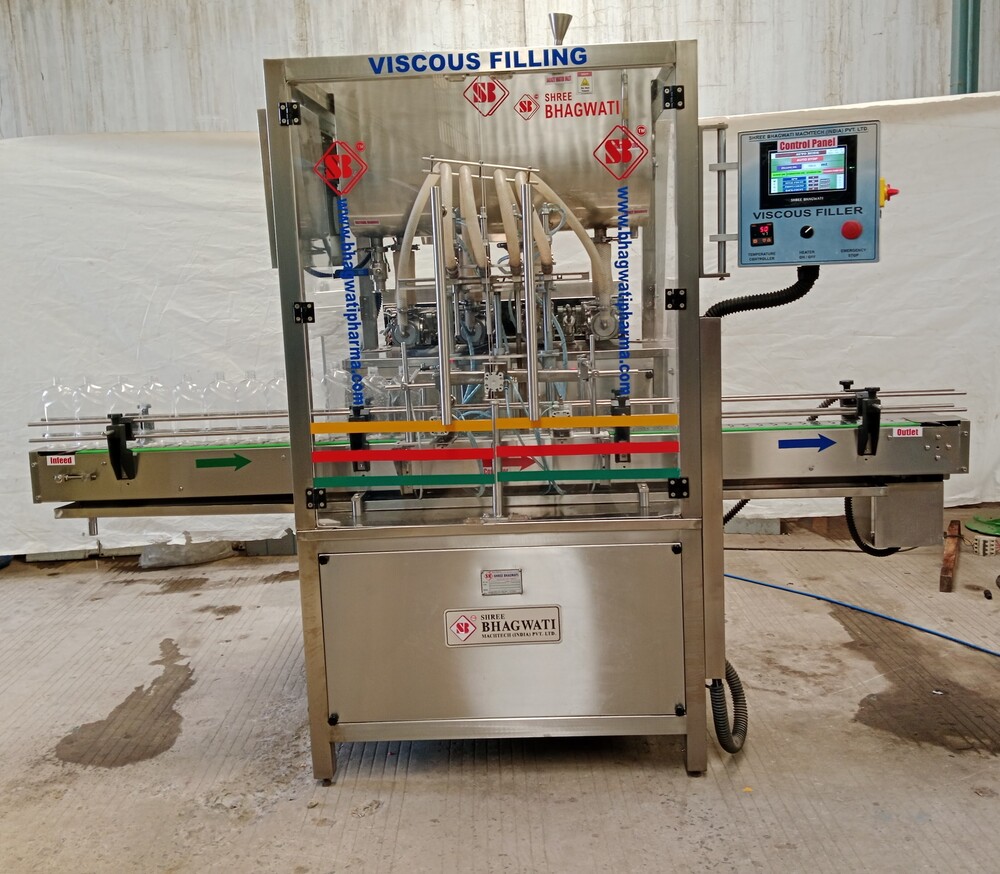

Automatic filling machine

This machine is specially made for all kinds of viscosity materials, such as chocolate paste, peanut butter, honey, butter, Mayonnaise,ketchup etc. All the contacted part with the oil is high quality stainless steel.. The machine adopts piston pump for filling. By adjusting the piston pump, it can fill all of the bottles in one filling machine, with quick speed and high precision.

Technical Parameters

Filling system: Piston pump driven by servo motor
Filling range : 100-500 ml
Filling speed : 1800-2000 b/h
Filling Precision : +1%
Power: 220/380 50/60 Hz 2 KW
Air pressure range: 0.4Mpa
Weight: 600 kg
Dimension: L1500 x W1200 x H1800

This machine is researched and developed by our company with years of experience, it is unique in domestic .Integrated automatically cap arranging with covering, vacuum capping. Adopted manual vacuum pump to achieve high vacuum. With the functions of no bottle no covering, alarming when no caps are available. Enjoyed high automation. The main pneumatic and electric parts are from world famous brands. With stable and reliable performance. It is widely used for vacuum capping of the Glass Jars with iron caps in the industries of canned food, beverage, seasoning, health care products etc.

Technical parameter

Power: 2.3KW including the vacuum pump
Cap diameter: 30-55 mm Bottle height: 80-250 mm
Bottle diameter: 30-85 mm
Max vacuum : -0.08 mpa
Capping torsion: 5-20 N.M
Air consumption: 0.6M3/0.7Mpa
Dimensions :about 2100 x 900 x 1630mm, 750X1060X1400mm

Purpose and brief

The function complete oral liquid bottle, vial or other types of self-adhesive label round the bottle. Reference thermal printer head printing batch number; PLC full control, touch screen set parameters; and whether the bottle not to sign, automatic fault alarm functions. Local interference is strong, stable and reliable performance.

Technique parameters

Production capacity: 50 bottles /min
Applicable specifications: round bottle affixed week
Labeling rate: + /- 99.5%
Power supply: 220V 50Hz
Power: 0.6Kw
Dimensions: 1800 x 900 x 1400
Production capacity: 1800-2000 BPH
Weight: about 850 kg

Versatile Customization

The Linear Type Oil Filling Line is engineered to adapt to diverse production needs. Its capacity, voltage, and dimensions can be tailored specifically to client requirements, allowing seamless incorporation into various industrial workflows. This flexibility ensures the solution meets unique operational demands.

Advanced Automatic Features

Equipped with an automatic grade and electric drive, this filling line minimizes manual intervention, maximizing productivity. The integration of a Human Machine Interface or PLC control enhances the operators command over the system, resulting in precise oil filling and improved overall efficiency.

Sturdy Stainless Steel Construction

With its robust stainless steel build, the machine guarantees longevity and resistance to corrosion. Its silver finish not only adds aesthetic value but also simplifies cleaning and maintenance, contributing to a hygienic industrial environment.

FAQs of Linear Type Oil Filling Line:

Q: How does the Linear Type Oil Filling Line operate in an industrial setting?

A: The Linear Type Oil Filling Line functions automatically, driven by electric power and managed via an advanced Human Machine Interface or PLC control. Operators set the desired parameters for oil quantity and packaging, and the system automates the filling process for maximum accuracy and efficiency.

Q: What are the customization options available for this oil filling line?

A: Clients can customize key elements like capacity (kg/hr), machine dimensions (L*W*H in inches), and voltage requirements. This ensures the equipment integrates seamlessly with your existing setup and meets your unique production needs.

Q: When should the warranty service be used for this machine?

A: The product includes a one-year warranty, effective from the date of purchase. Warranty service should be utilized if the machine exhibits manufacturing defects or operational issues within the covered period, ensuring prompt professional support.

Q: Where can this filling line be installed, and what industries is it suitable for?

A: This oil filling line is designed for versatile installation in various industrial facilities, including food processing, chemical processing, and manufacturing plants. Its robust construction ensures performance in demanding industrial environments.

Q: What is the process of oil filling with this automatic line?

A: The process starts with empty containers being positioned under the filling nozzles. The control system dispenses precise amounts of oil into each container, after which the filled packages are transferred for sealing or further processing, all with minimal manual intervention.

Q: How is this machine beneficial for manufacturers and suppliers?

A: Manufacturers and suppliers benefit from increased operational efficiency, reduced downtime, and consistently accurate filling. The automatic system helps lower labor costs, ensures product quality, and supports scaling up production to meet market demands.

Q: What types of packaging materials are compatible with this filling line?

A: The machine is compatible with commonly used packaging materials such as plastic and wood, accommodating diverse packaging requirements in industrial applications.
