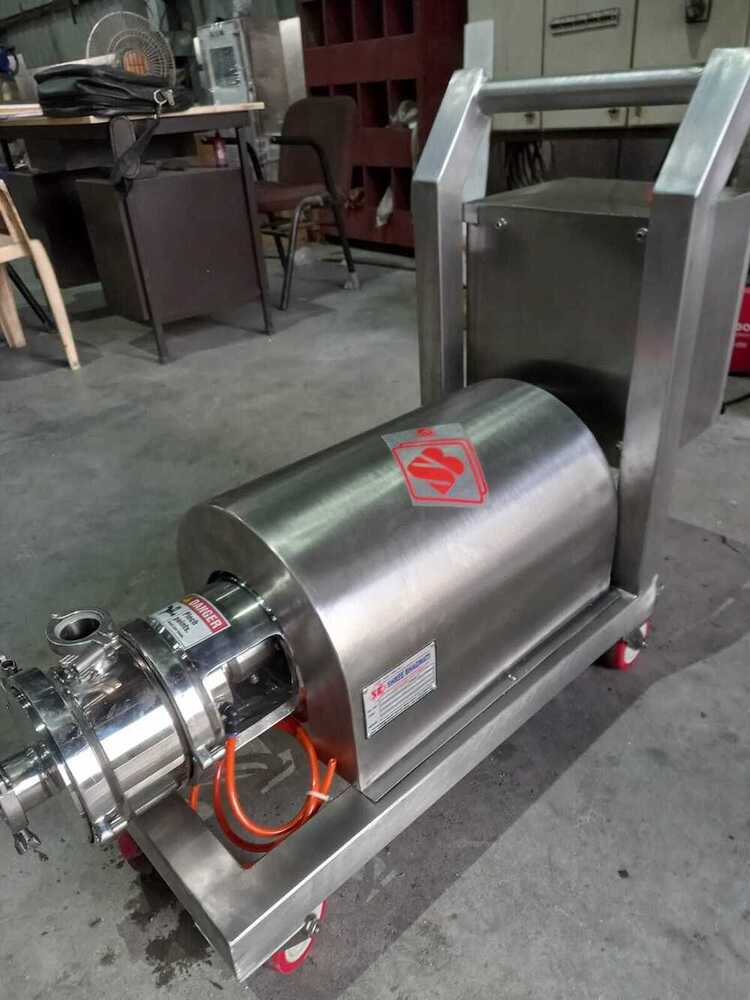

Inline Homogenizer Mixer - 3 HP

Name: Inline Homogenizer Mixer - 3 HP
Brand: SHREE BHAGWATI MACHTECH (I) PVT. LTD.
Price: 350000 INR
Availability: InStock

Price 350000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Inline Homogenizer Mixer - 3 HP Specification

Type
Inline Homogenizer Mixer

Material
Stainless Steel (SS 304/316)

Capacity
50 - 1000 LPH (varies by model)

Computerized
No

Automatic Grade
Semi-Automatic

Voltage
415 V AC

Frequency (MHz)
50 Hz

Size
Standard/Customizable

Width
Standard/Customizable

Weight
Approx. 90 - 120 kg

Dimension (L*W*H)
Approx. 750 x 400 x 900 mm

Cleaning
CIP/SIP compatible

Surface Finish
Mirror/Matte

Power
3 HP

Phase
Three Phase

Port Size
1'' or 1.5'' Tri-clamp/Threaded

Construction
Skid mounted

Motor Speed
2800 RPM

Noise Level
< 75 dB

Pump Type
Centrifugal with Rotor-Stator

Homogenization Fineness
Up to 2-5 microns (application dependent)

Discharge Pressure
Up to 3 Kg/cm2

Application
Emulsification, Homogenization, Mixing of Liquids and Semi-liquids

Shaft Seal
Mechanical Seal

About Inline Homogenizer Mixer - 3 HP

Capitalise on the finest in mixing technology with our Splendiferous Inline Homogenizer Mixer - 3 HP. Engineered for remarkable homogenization, this semi-automatic marvel delivers a homogenization fineness of up to 2-5 microns, tailored for diverse application media. With a robust 3 HP, 2800 RPM motor and advanced centrifugal rotor-stator pump, it ensures consistent emulsification and mixing of liquids or semi-liquids. Manufactured using premium SS 304/316, it boasts a mirror or matte finish, CIP/SIP compatibility, and customizable dimensions, offering tremendous value and performance for manufacturers, distributors, or exporters.

Unmatched Application Versatility & Features

The Inline Homogenizer Mixer - 3 HP is designed for tackling challenging emulsification, homogenization, and mixing tasks with exceptional finesse. Its application media spans liquids and semi-liquids, making it ideal for the food, pharmaceutical, and cosmetic sectors. Special features include a mechanical shaft seal, noise level below 75 dB, and comprehensive CIP/SIP cleaning compatibility. The advantage lies in its robust construction, skid-mounting, and flexibly customizable settings, ensuring optimal process results every time.

Domestic Market, Packaging & Swift Delivery

Our Inline Homogenizer Mixer - 3 HP serves the main domestic market across India. Every unit is packaged securely to prevent damage during transit, maintaining the product in its finest condition. Delivery timeframes are communicated with each quotation, and professional logistics solutions ensure your order is delivered promptly and efficiently. With reliable after-sales support and streamlined processes, we guarantee a seamless acquisition and operational experience for all customers.

FAQ's of Inline Homogenizer Mixer - 3 HP:

Q: How does the Inline Homogenizer Mixer - 3 HP achieve such fine homogenization?

A: The mixer utilises a centrifugal pump with a rotor-stator mechanism, enabling effective breakdown of particles to achieve homogenization fineness up to 2-5 microns, depending on your application.

Q: What types of applications is this homogenizer suitable for?

A: It is ideal for emulsification, homogenization, and mixing of liquids as well as semi-liquids, serving industries like food processing, pharmaceuticals, chemicals, and cosmetics.

Q: When can customers expect delivery after placing a quotation?

A: Delivery timelines will be specified in your quotation and typically depend on order customization and logistics arrangements. However, we prioritise fast processing and prompt dispatch.

Q: Where can this homogenizer be installed in a production line?

A: Due to its skid-mounted and customizable design, it can be seamlessly integrated into standard or unique production lines, adaptable to your spatial requirements.

Q: What are the advantages of using stainless steel (SS 304/316) for construction?

A: Stainless steel offers excellent durability, corrosion resistance, and is CIP/SIP compatible, ensuring hygiene, quick cleaning, and long operational life.

Q: How is the mixer cleaned and maintained?

A: The mixer is compatible with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems, allowing for thorough, automated cleaning and sterilization suited for sanitary operations.
