8 Head Bottle Screw Capping Machine

About 8 Head Bottle Screw Capping Machine

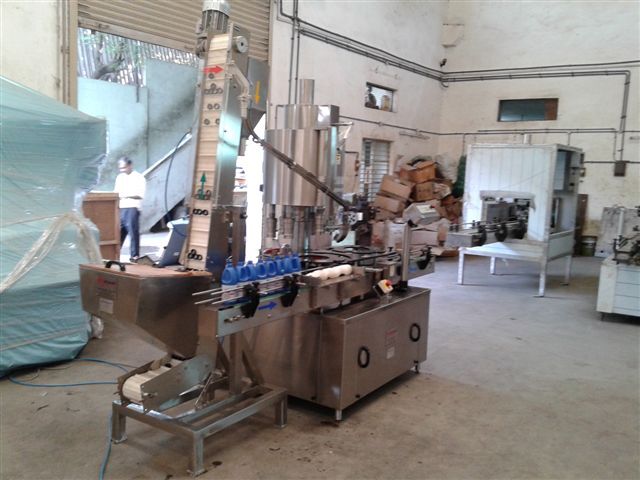

Eight Head Bottle Screw Capping Machine

Description :

Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.

Operation : The feed container moving on conveyor belt are feed into an in-feed star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the rotating head pickup a cap from the cap star wheel which is receiving from delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of sealing, rotating head is design to seal container according to pre-set torque.

Technical Specification : Model SBSCM - 100 SBSCM - 150 SBSCM - 200 Output / Hour* 3600 to 6000 bottles 3600 to 9000 bottles 4000 to 12000 bottles Direction of Movement Left to Right No. of sealing head 4 Nos. 6 Nos. 8 Nos. Electrical Specification Main Motor Cap feeding Bowl 1.0 HP / 415 Volts / 50 Hz 300 Watt. 2HP / 415 Volts / 50 Hz Height of Conveyor 860 mm to 910 mm Machine Dimensions 2135mm(L) x 1120mm(W) x 2250 (H) Approx 2150mm(L) x 1120mm(W) x 2250 (H) Approx 2135mm(L) x 1200mm(W) x 2225 (H) Approx Case Dimensions 2650mm(L) x 1250mm(W) x 2250 (H) Approx 2650mm(L) x 1250mm(W) x 2250 (H) Approx 2650mm(L) x 1350mm(W) x 2250 (H) Approx Net Weight 900 kgs, Approx 900 kgs, Approx 1050 kgs, Approx Gross Weight 1250 kgs, Approx 1250 kgs, Approx 1400 kgs, Approx Change parts required (A) Container: Star Wheel, Back Guide, Feed Worm (B) Cap Die, Delivery chute, bowl & S.S. Star wheel.

Input Specifications : Screw Cap Specification Diameter 22 mm to 56 mm Height 15 to 18.3 mm Container Size Round Shape Ë 22 mm to Ë 100 mm Respectively Height 40 mm to 240 mm (Height option for `other bottle height available) Flat / Square 15mm to 100 mm (Length) Respectively 10mm to 50 mm (Width) Respectively Height 40 mm to 240 mm (Height option for `other bottle height available) * Depends on size, shape and Neck dia of container Can be supplied as per customer requirements With help of change parts.

Salient Features : No container no cap arrangement. Single motor synchronizes conveyor, star wheel, & platform turret. Adjustable height of conveyor belt. All contact parts are made out of stainless steel. Pick & Place arrangement. Torque adjustable. Low noise level, low power consumptions.

Optional Features : No cap No container arrangement. Motorized Height Adjustments. Acrylic cabinet. Safety Guard for Operation and Protection. Specially designed hopper is to increase storage capacity of bowl.

Utility Requirement : Electrical Supply Three Phase + Neutral + Earthing Electrical Load 1.5 KW Air Pressure Minimum : 6 Bar, 0.5 CFM.

Note: Dimensions & Technical Details are subject to change as per customers' requirement without any further notice.

Advanced Automation for Seamless Operation

This machine showcases full automation, integrating PLC control and Human Machine Interface for precise management. Users enjoy easy operation and minimal manual intervention, boosting productivity while reducing errors.


Built for Industrial Demands

Manufactured from robust stainless steel, this capping machine withstands heavy-duty use in diverse industrial settings. Its durable components ensure long-lasting performance even in rigorous environments.


Flexible Power and Capacity Options

Designed to cater to varied operational needs, the machine supports voltages from 110 to 215V and manages bottle capacities from 30 to 300. This flexibility suits small-scale to large-scale production facilities.


Eco-Friendly and Efficient Solution

The machine offers an eco-friendly alternative, minimizing energy consumption while maximizing output. Its efficient electric drive system contributes to sustainable manufacturing practices.
