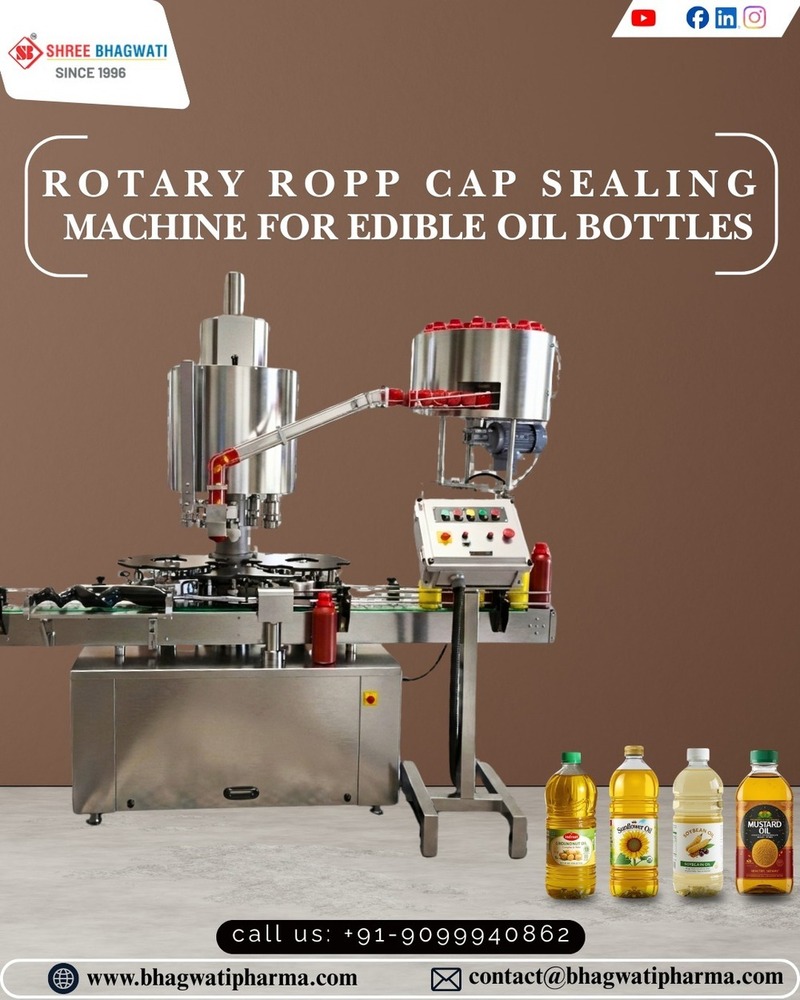

Rotary ROPP Cap Sealing Machine - single head

Name: Rotary ROPP Cap Sealing Machine - single head
Brand: SHREE BHAGWATI MACHTECH (I) PVT. LTD.
Price: 450000 INR
Availability: InStock

Price 450000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Rotary ROPP Cap Sealing Machine - single head Specification

Power Supply
Single Phase AC

Usage
For sealing bottles by fixing ROPP caps

Filling Range
NA (Sealing Machine)

Noise Level
Below 70 dB

Application
Pharmaceutical, Food, Beverages, Edible Oil, Liquor Industries

Features
Single Head, Heavy Duty Gear Box, Safety Clutch, Adjustable Capping Pressure

Type
Rotary ROPP Cap Sealing Machine - Single Head

Material
Stainless Steel

Feature
No Bottle-No Cap System, Vibration less Operation, Low Power Consumption, Robust Construction

Auxiliary Packaging Machine Type
Capping Machine

Capacity
40 to 60 bottles/min (depends on bottle size and cap type)

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC based

Drive Type
Electric Motor

Power
1.0 HP

Voltage
220-240V, 50 Hz

Weight (kg)
Approx 400 kg

Dimension (L*W*H)
1800 mm x 900 mm x 1800 mm

Color
Stainless Steel Finish

Sealing Type
ROPP (Roll On Pilfer Proof) Cap Sealing

Operating Temperature
Ambient to 45C

Power Consumption
approx. 0.75 kW/hr

Construction
SS 304 Contact Parts

Suitable Containers
Glass/Plastic/PET Bottles

Operator Requirement
1 skilled operator

Cleaner Access
Open-Frame Design for Easy Maintenance

Lubrication System
Automated Grease Points

Utility Requirements
Compressed air 6 bar (for some models)

Cap Size Range
22mm to 53mm and beyond with custom heads

Net Weight
Approx 400 kg

Conveyor Height
Adjustable from 800 mm to 850 mm

Output Per Hour
2500 - 3600 Bottles

Change Parts
Quick Changeover Parts Provided

Safety Features
Overload Protection, Emergency Stop

Bottle Diameter Range
25mm - 85mm

Rotary ROPP Cap Sealing Machine - single head About

Elevate your production line with the first-string Rotary ROPP Cap Sealing Machine-Single Head, a trending solution for bottling in pharmaceutical, food, beverage, edible oil, and liquor industries. Engineered for top-tier efficiency, it delivers an extraordinary output of 2,500-3,600 bottles per hour, capping bottles of various diameters and cap sizes. With cost-effective operation, robust SS 304 construction, and state-of-the-art safety features, this automatic, PLC-controlled machine promises easy maintenance, reliable performance, and seamless changeover for high-volume packaging environments. Procure excellence today.

Unmatched Versatility & Competitive Edge

The Rotary ROPP Cap Sealing Machine-Single Head stands out with broad application across glass, plastic, and PET bottle sealing for multiple sectors. Its primary competitive advantages include robust construction, computerized PLC control, quick changeover parts, and advanced safety mechanisms. This top-tier automatic sealer is engineered for intensive industrial usage, with vibrationless operation and low noise, making it the go-to solution for manufacturers seeking efficiency and reliability in high-paced environments.

Swift Delivery & Professional Handling

Each Rotary ROPP Cap Sealing Machine is meticulously packaged and securely shipped goods via a trusted FOB port in India. Upon confirmation, machines are handed over for delivery typically within a prompt timeframe, ensuring clients receive their investments swiftly. Samples can be arranged for select models, offering manufacturers an opportunity to experience quality firsthand before procurement. Expect robust packaging and professional logistics management for a seamless acquisition process.

FAQ's of Rotary ROPP Cap Sealing Machine - single head:

Q: How does the Rotary ROPP Cap Sealing Machine enhance production efficiency?

A: This single-head sealing machine offers extraordinary output rates (2,500-3,600 bottles per hour), supports quick changeover for diverse bottle sizes, and operates with low power consumption, maximizing throughput with minimal resources.

Q: What bottle and cap sizes are compatible with the machine?

A: It accommodates bottle diameters from 25mm to 85mm and ROPP cap sizes ranging from 22mm to 53mm. Custom heads can be supplied for other specifications upon request.

Q: Where can this capping machine be utilized?

A: Ideal for pharmaceutical, food, beverage, edible oil, and liquor industries, the machine is suited for both glass and PET/plastic containers, providing wide-ranging application.

Q: What are the major safety and operational features included?

A: The machine incorporates overload protection, safety clutch, emergency stop, and no bottle-no cap system. A heavy-duty gear box, robust SS 304 parts, automated lubrication, and PLC-based control ensure safe and reliable operation.

Q: How is the machine maintained, and is it user-friendly?

A: With an open-frame design, automated grease points, and quick-change parts, the machine is easy to clean and maintain. Only one skilled operator is required due to its automated and computerized features, simplifying day-to-day usage.
