High Speed Rotary Tablet Press

High Speed Rotary Tablet Press
Send Inquiry
Product Code : SBTP
Brand Name : shree Bhagwati
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 3,00,000 to 20,00,000 INR
Product Specifications
  • Product Type
  • Other
  • Material
  • Stainless steel
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
  • Drive Type
  • Electric
  • Heating System
  • Other
  • Power Source
  • Electric
  • Voltage
  • As per customer requirement Watt (w)
  • Capacity
  • 8-45
  • Warranty
  • 1 Year warranty
Product Description

High Speed Rotary Tablet Press

Salient Features : Tablet Press Machine

  • It is a high speed rotary tablet press for higher tablet output, suitable for large batch production.

  • Machines is having a square design with full consideration of GMP standards

  • All the tablet parameters can be fine tuned during the operation of the machine from outside the tableting zone, with front control at outside of the machine , having SEIKP dials.

  • The machine is having PRE-COMPRESSION facility.

  • The machine is having A.C. variable frequency drive for the main motor.

  • Machine is having A.C. variable drive for force feeding motors, which ebables operators to synchronize machine's speed & feed both.

  • The machine is having electromagnetic clutch arrangements

  • The machine is having one piece turret of special grade casting . However, three piece turret with SS-304 / SS-316 middle plate is also available (Optionally). Electroless nickel plating can also be available to the turret (Optionally)

  • The machine is having Center Drive Type Gear Box

  • The machine is having HELICAL GEAR RING to drive the turret

  • All guard are Interlocked for safety

  • The tablet press machine is having Auto Lubrication System

  • The tablet press machine is having box Type Detachable Control Panel having all electrical control on the top. Acrylic conver is also provided to protect the controls form the dust.

  • The tablet press machine having Hydraulic Power pack for pressure loading and overload release.

  • The machine is having excellent BOTTOM DRIVEN FORCE FEEDING SYSTEM for material feeding. However, Gravity type feeding also can be provided optionally.

  • Two layer attachment can also be provided, Optionally

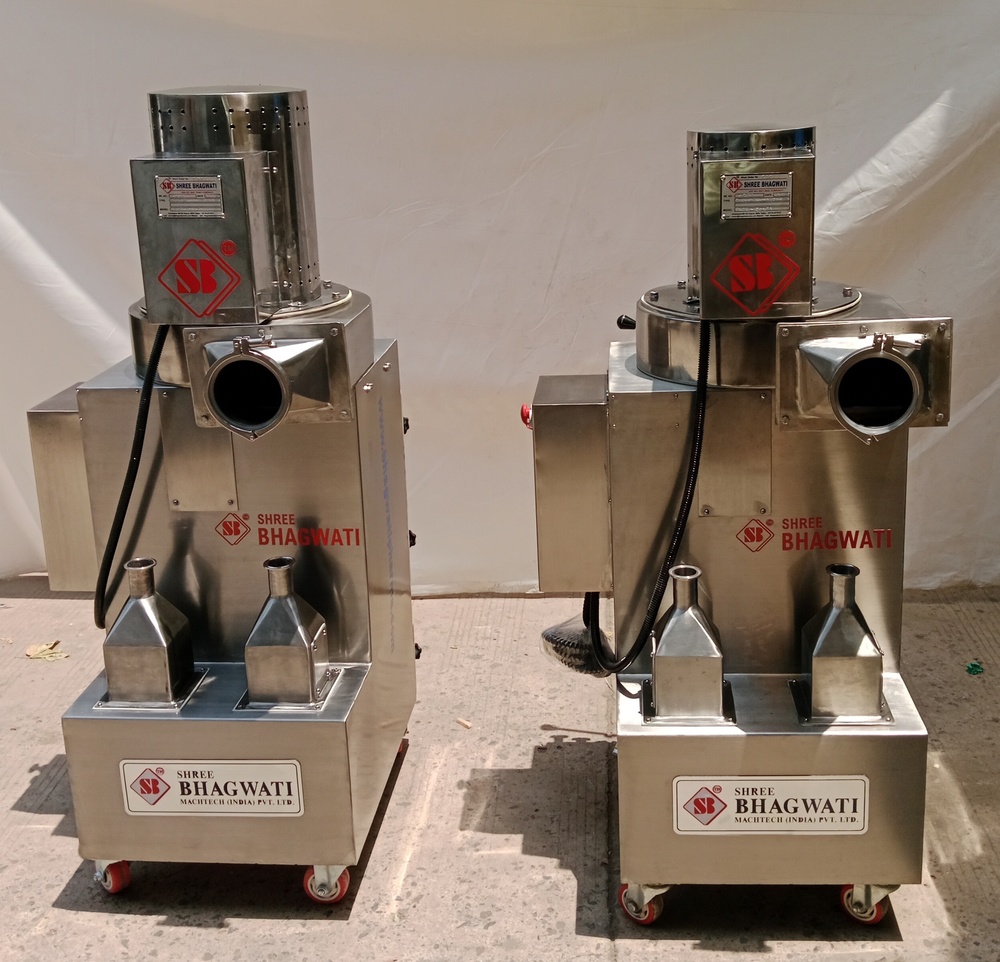

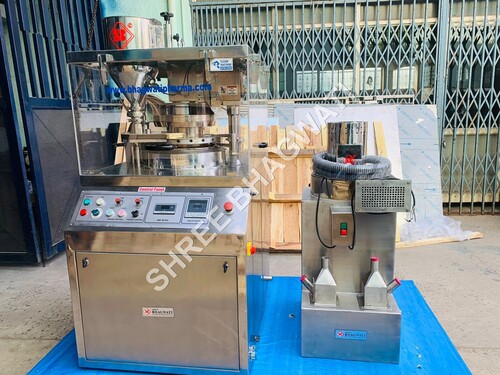

  • The tablet press machine is having specially designed Dust Extractor Nozzle which can be connected with the Dust Extractor, away form machine

  • The tablet press machine are backed by excellent after sales service



Technical Specification : Tablet Press Machine

Machine Type

Press IV - 45

Press IV - 55

Press IV - 61

Press IV - 75

Number of Stations

45

55

61

75

Type of Tooling

D

B

BB

BB

Output - Tablets/Hr.

65, 000 to 3,25,000

79,000 to 3,96,000

87,840 to 4,39,200

1,08,000 to 5,40,000

Max. Operating Pressure (Main)

10 Tons

6.5 Tons

6.5 Tons

6.5 Tons

Max. Operating Pressure

(Pre-Compression)

1 Tons

1 Tons

1 Tons

1 Tons

Depth of fill

20 mm

17.4 mm

17.4 mm

17.4 mm

Max. Tablet Dia.

25 mm

16 mm

16 mm

11.1 mm

Upper Punch entry

1.5 to 8 mm

1.5 to 8 mm

1.5 to 8 mm

1.5 to 8 mm

Power (Total)

8.75 KW / 11.7 HP

8.75 KW / 11.7 HP

8.75 KW / 11.7 HP

8.75 KW / 11.7 HP

Power Main Electric Motor

7.5 KW / 10 HP

1440 RPM, 415 V.

50 Hz, 3 Ph.

7.5 KW / 10 HP

1440 RPM, 415 V.

50 Hz, 3 Ph.

7.5 KW / 10 HP

1440 RPM, 415 V.

50 Hz, 3 Ph.

7.5 KW / 10 HP

1440 RPM, 415 V.

50 Hz, 3 Ph.

Power

(Feeder Motor 2 NOS.)

0.19 KW / 0.25 HP

1440 RPM, 415 V.

415 V., 50 Hz, 3 Ph.

0.19 KW / 0.25 HP

1440 RPM, 415 V.

415 V., 50 Hz, 3 Ph.

0.19 KW / 0.25 HP

1440 RPM, 415 V.

415 V., 50 Hz, 3 Ph.

0.19 KW / 0.25 HP

1440 RPM, 415 V.

415 V., 50 Hz, 3 Ph.

Overall HxWxD (mm)

2570 (L) x 2800 (W) x2330 (H)

1750 (L) x 1430 (W) x 1485 (H)

Net Weight (approx)

3800 Kgs

Case Dimensions (mm)

1550 (L) x 1700 (W) x 2250 (H)

Gross Weight

4150 Kg



Note : Specification and features of the machineries are subject to change without any prior notice

Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cheque, Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
  • Supply Ability
  • 30 Per Month
  • Delivery Time
  • 8 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden Packing Only
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • CE & ISO Certified
