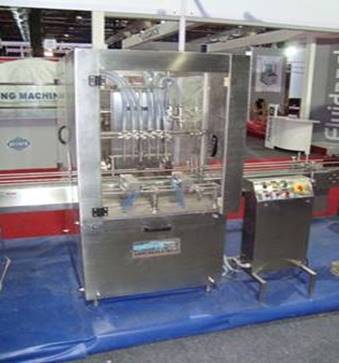

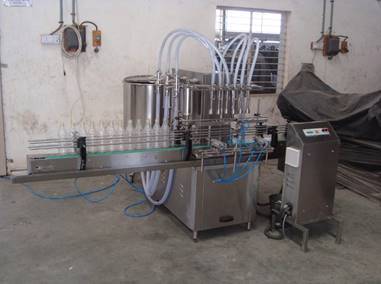

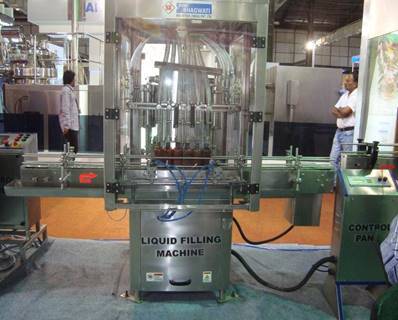

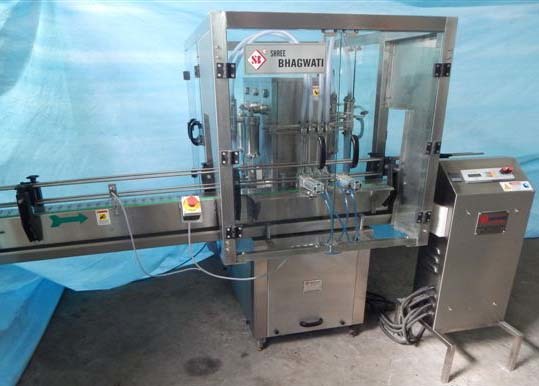

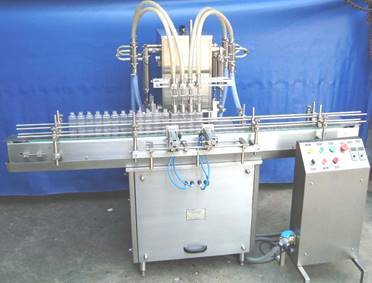

Four Head Volumetric Liquid Bottle Filling Machine

About Four Head Volumetric Liquid Bottle Filling Machine

Four Head Volumetric Liquid Bottle Filling Machine

Description : The Bhagwati Automatic Volumetric liquid bottle filling machine, which is made compact, versatile and enclosed in stainless steel elegantly matt finish body. This unit works on volumetric principal and reciprocating self-centring device.   Operation : Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum of time. The main drive consists of a helical gearbox driven by A/c motor & through controlled by an Ac frequency drive. The speed can be set in terms of bottles per minute. The conveyor drive consists of a hallow shaft, geared motor controlled by an Ac frequency drive. A knob can set the speed of conveyor.

Technical Specification :   Output / Hour 2500 to 3600 Containers (Depending on Nature of Liquid & Fill size) Electrical Motor 1HP / 440 Volts / 3Phase / 50 Hz (Four wire) For Main Machine 0.5 HP / 440 Volts / 3Phase / 50 Hz (Four wire) For Conveyor Conveyor Height 750 mm to 840 mm Adjustable. Container Size " 30 mm to " 100 mm, Maximum Height 210 mm Fill Size 10 ml to 1000 ml (With the help of required change parts) Overall Dimension 2525 mm(L) X 1050 mm(W) X 1400 (H) Approx

Filling Syringe Range : 2 ml to 10 ml 10 ml to 30 ml 30 ml to 100 ml 50 ml to 260 ml 100 ml to 500 ml 500 ml to 1000 ml

Salient Features : The unit is made compact & versatile   S.S. Slat conveyor. S.S. Elegantly Matt Finished Body No Container No filling system. Reciprocating Filling nozzle with self centring device Variable A/c Frequency Drive. Pneumatically operated bottle stopper

Utility Requirement   Electrical supply 3 Phase + Neutral + Earthing Electrical load 2 KW Air Pressure Minimum: 5 Kg / cm2   Qty:  5 C.F.M



Precision Filling for Various Liquids

This volumetric filling machine is designed to seamlessly fill bottles ranging from 5ml to 1000ml with high accuracy. Its robust stainless steel construction ensures hygiene and longevity, which is especially critical for industries like pharmaceuticals, cosmetics, and food and beverages. The automated process maintains consistent results, boosts productivity, and reduces manual labor.


Advanced Control & Eco-Friendly Operation

The machine features user-friendly controls through either a Human Machine Interface or PLC, accommodating different preferences for intuitive operation. Powered entirely by electricity, it emphasizes eco-friendly functionality and can be tailored to operate under different voltage specifications. Its automated design minimizes wastage and maximizes efficiency for businesses.


Versatility for Indian Industries

Proudly distributed, exported, and manufactured in India, this filling machine adapts to a variety of industrial setups. With a one-year warranty and robust after-sales support, it offers reliability for sectors seeking scalable and precise liquid filling solutions. Its versatility ensures smooth integration into existing production lines across multiple industries.
