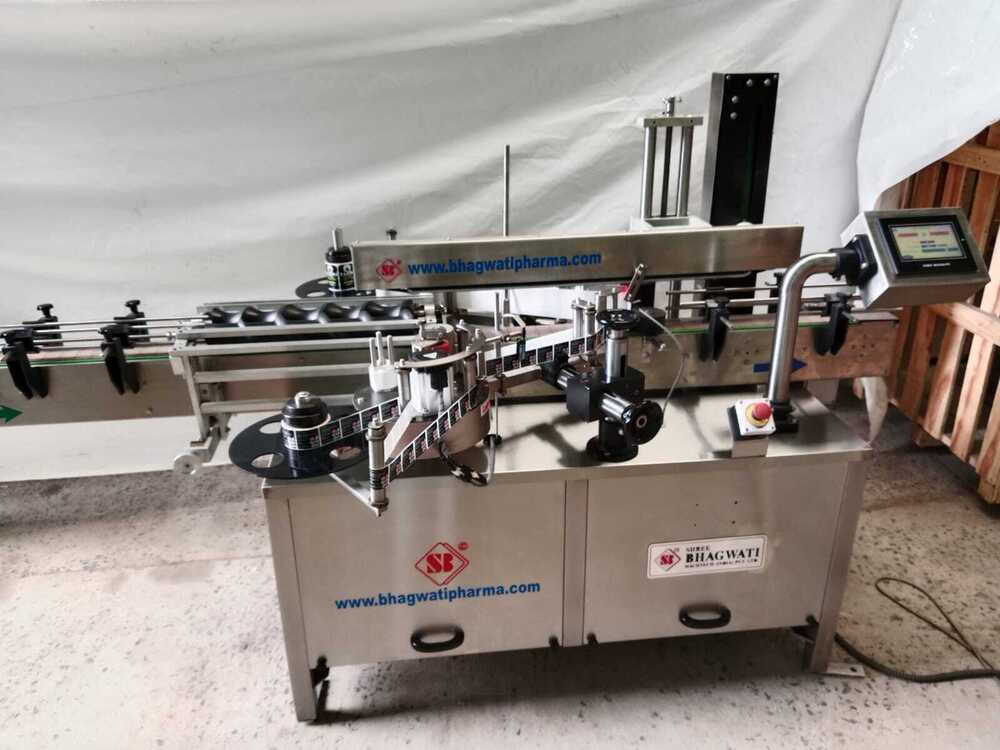

Automatic Vial labeling Machine

Automatic Vial labeling Machine
Send Inquiry
Product Code : SBSL -120
Brand Name : Shree Bhagwati
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price
  • 300000-1000000 INR
Product Specifications
  • Product Type
  • Other
  • Material
  • stainless steal
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
  • Drive Type
  • Electric
  • Heating System
  • Other
  • Power Source
  • Electric
  • Voltage
  • as per customer required Watt (w)
  • Capacity
  • 60-120 BPM Kg/hr
  • Feature
  • High Efficiency, Lower Energy Consumption, Low Noise, ECO Friendly, High Performance, Simple Control, Touch Screen
  • Warranty
  • 1 Year
Product Description

SPECIFICATION OF THE EQUIPMENT MACHINESBASICS

MODEL

SBSS-120

Machine Name

Automatic Sticker Labeling Machine

Model

Servo Model / Stepper Model

Suitable for Products

Vial

Application

Labeling on Straight Surface of Round Vial

Production Speed Per Minute (depends on Vial Size, label length and material)

Up to 80 Vials per Minute

Labels Requirement

Self Adhesive Sticker Labels in Roll Form having consistence 3 mm gaps between the 2 labels.

Label Material

Self Adhesive Paper Labels

Label Roll Outer Diameter

Maximum 300 mm

Label Core ID

75 mm

Label Dispensing Accuracy

+1 mm (for wrap around label: + 1.5mm )

Working Height

860 mm (+/-50 mm)

Conveyor Length

6 Feet

Silent Feature

SERVO base technology (Optional)

PLC + HMI operated (Optional)

Separate motor for individual operation like Vial separation, wrapping label, dispenser, conveyor speed

Separate AC drive for individual operation

Compact and user friendly Machine

Wheel type Up-down movement system

Castor wheel for machine movement.

No Label Data Input/retrievals require for any Label Size.

No Change Parts for Product and Label size.

Virtually Maintenance free machine.

Easy to change label application height.

User Friendly Label Placing Adjustments.

Suitable for On-Line Inkjet and Contact Coding System.

Suitable for Partial Labeling.

Built In A.C. Variable Frequency Drive System.

MACHINES MATERIAL OF CONSTRUCTION

PARTICULAR

SPECIFICATION

Machine Main Base Frame

Stainless Steel 304 Pipe Structure

Machine Coverings

Complete in Stainless Steel 304

Product Contact Parts

Stainless Steel 304

Non Contact Parts

Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)

Conveyor Slat

Stainless Steel 304 Slat with Nylon Strips on Side

Conveyor Shafts

Mild Steel with Hard Chrome or Zinc Plating

Conveyor Sprockets

Mild Steel or Nylon

Bearings

SKF / Niche / Equivalent

Plating(Wherever Applicable)

Zinc / Hard Chrome / Blackening

Wrapping Belt

End Less Sponge Coated Wrapping Belt

Wrapping Guide

Sponge Coated Wrapping Guide

Vial Separation / Spacing Unit

Aluminum Roller (Silicon Covered)

Guide Rod & Pin

Stainless Steel 304

Dispenser Rollers

Rubber Molded + Aluminum + Knurling Rollers

Dispenser Unit Up & Down

Screw Based UP & DOWN Assembly

OPTIONAL FEATURE

  • Label Roll Empty Machine Stop System with Alarm.
  • Missing Label in Roll Machine Stop System with Alarm.
  • Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it.
  • Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed ranges available.
  • Toughened Glass or Acrylic Safety Cabinet for Machine.
  • Tower Light showing the machine status / operation.
  • Colour or Mono Touch Screen with PLC for machine operation and showing various error messages and information on display.
  • Special Sensing system for checking missing label on product.
  • Low Compressed Air Machine Stop with Alarm system for pneumatically o- operated coding system.
  • Vision System for checking Barcode,presence or absence of Coding or pharma code on labels.
  • Vision System with OCR system for checking coding on labels.
  • Online pneumatically operated product rejection system.
  • Poly carbonate Enclosure in Stainless Steel Profile.
  • Packing Conveyor.
Trade Information
  • Supply Ability
  • 30 Piece Per Month
  • Delivery Time
  • 4-6 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Certifications
  • CE & ISO Certified
