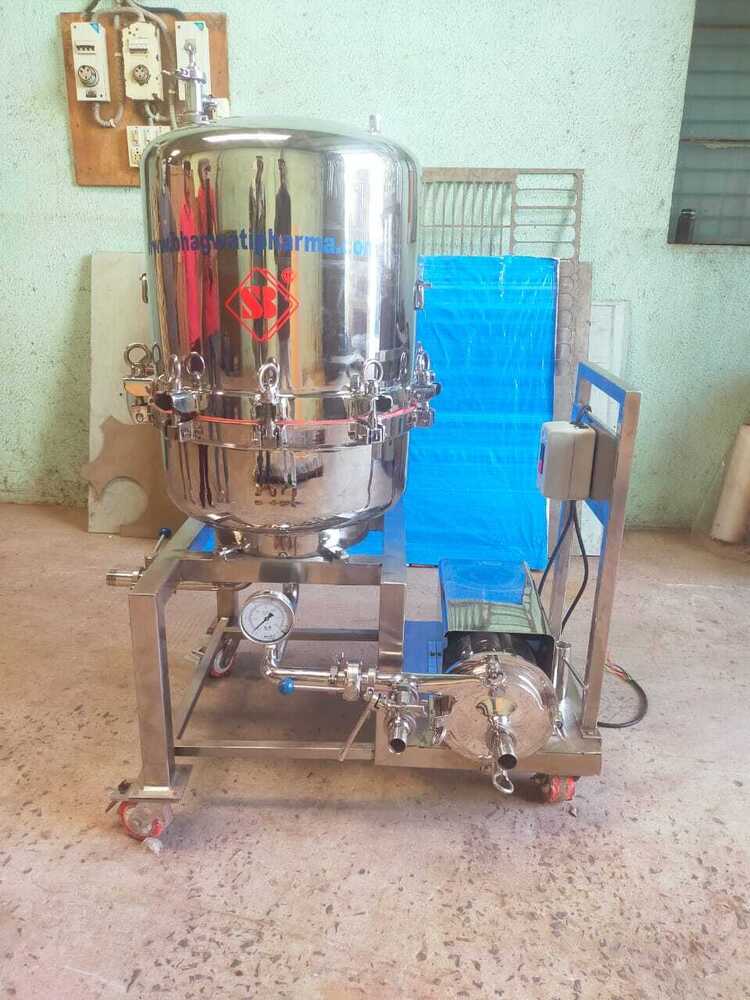

Zero Hold Up Sparkler Filter Press 18 Dia 10 Plates

Name: Zero Hold Up Sparkler Filter Press 18 Dia 10 Plates
Brand: SHREE BHAGWATI MACHTECH (I) PVT. LTD.
Price: 450000 INR
Availability: InStock

Price 450000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Zero Hold Up Sparkler Filter Press 18 Dia 10 Plates Specification

Type
Zero Hold Up Sparkler Filter Press

Material
Stainless Steel (SS304/SS316)

Capacity
Variable - Depending on media and application

Computerized
No

Automatic Grade
Semi-Automatic

Voltage
230-415 V

Frequency (MHz)
50 Hz

Size
18 inch Diameter

Width
Approx. 470 mm

Weight
Approx. 150-180 kg (varies as per specification)

Dimension (L*W*H)
Approx. 900 x 600 x 1100 mm

Outlet/ Inlet Connection
1.5" or 2" TC/ Screwed/ Flanged as per requirement

Design Pressure
Maximum 4-6 kg/cm2

Number of Plates
10 Plates

Gasket Material
Silicone/EPDM/PTFE (As required)

Application
Pharmaceutical, Chemical, Food & Beverages, Cosmetics, Distilleries

Filter Media Compatibility
Suitable for various filter cloths or media

Mounting Type
Movable on Castor Wheels

Working Temperature
Up to 80C (standard)

Finish
Mirror/ Matt as required

Filtration Area
Approx. 1.0 - 1.2 m2 (depends on plate configuration)

About Zero Hold Up Sparkler Filter Press 18 Dia 10 Plates

Unlock an astounding deal on our venerable Zero Hold Up Sparkler Filter Press 18 Dia 10 Plates-a rare find designed for noble efficiency in pharmaceutical, chemical, food & beverage, cosmetics, and distillery applications. This semi-automatic machine promises a filtration area of approx. 1.0-1.2 m2, with 10 robust plates, variable capacity, and peak design pressure of 4-6 kg/cm2. With multiple outlet/inlet and gasket options, mirror/matt finish, sturdy SS304/SS316 build, and user-friendly, movable castor wheels, this offer is ending soon-elevate your filtration process now!

Advanced Features & Applications

The Zero Hold Up Sparkler Filter Press 18 Dia 10 Plates boasts special features like mirror/matt finish and compatibility with silicone, EPDM, or PTFE gaskets. Designed for seamless filtration, it handles working temperatures up to 80C and offers flexible inlet/outlet configurations. Its robust stainless steel frame ensures durability and safety, making it ideal for pharmaceutical, chemical, beverage, cosmetics, and distillery sectors. User-friendly mobility on castor wheels further enhances operational versatility across applications.

Market Reach & Delivery Information

Our Zero Hold Up Sparkler Filter Press caters to the main domestic markets across India, with efficient FOB port drop-off options. Once a purchase order is received, delivery time is prioritized to ensure swift, reliable shipment of your order. This offer comes with the backing of a reputable exporter, manufacturer, and supplier network, ensuring your machine arrives securely at your location-ready for robust, everyday operational demands. Don't miss this limited-time deal!

FAQ's of Zero Hold Up Sparkler Filter Press 18 Dia 10 Plates:

Q: How does the Zero Hold Up Sparkler Filter Press 18 Dia 10 Plates improve filtration efficiency?

A: The Zero Hold Up design ensures minimal product hold-up, allowing for superior recovery of filtrate and reducing waste, making your filtration process more economical and efficient.

Q: What is the filtration area of this filter press and how does plate configuration impact it?

A: The approximate filtration area ranges from 1.0 to 1.2 m2, depending on your chosen plate configuration, allowing for custom capacity to suit different processing needs.

Q: Where can this filter press be used?

A: This versatile machine is suitable for pharmaceuticals, chemicals, food & beverage, cosmetics, and distillery industries, thanks to its adaptable design and material compatibility.

Q: What are the main benefits of its movable mounting type?

A: Being mounted on castor wheels, the filter press can be easily transported and positioned as needed, enhancing operational flexibility and convenience within your workspace.

Q: When will the filter press be delivered after I place a purchase order?

A: Delivery time starts as soon as we receive your purchase order, aiming for prompt drop-off through efficient FOB port handling or direct domestic shipment, ensuring minimal wait time for your project.
