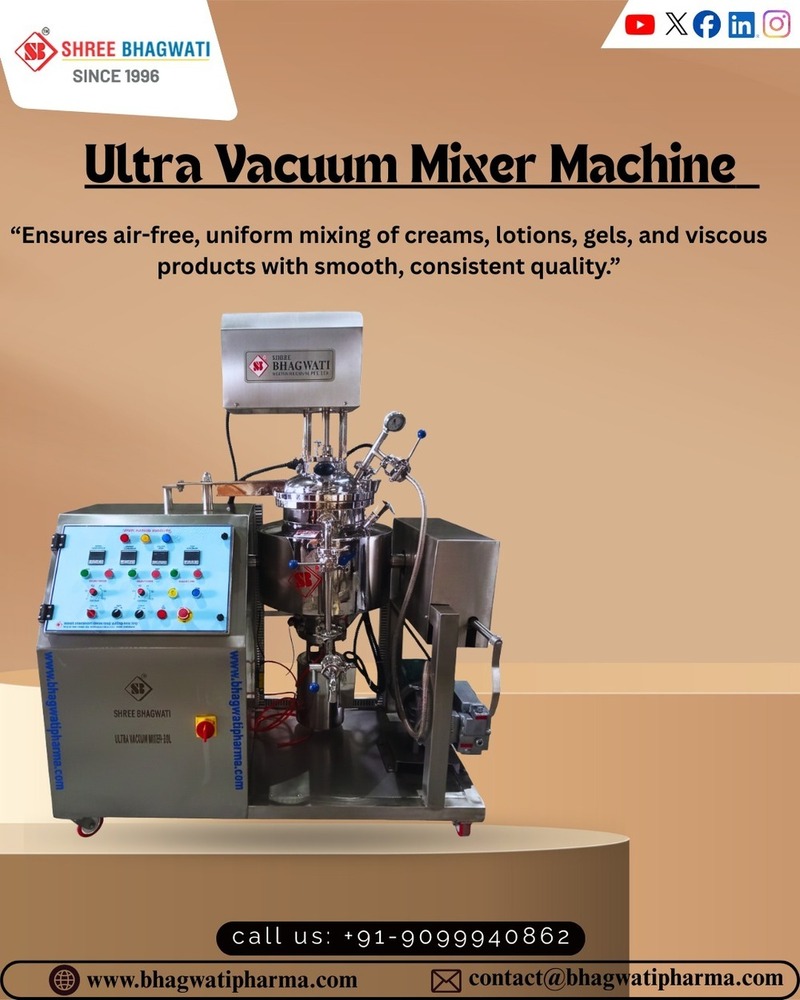

Ultra Vacuum Mixer 10 Kgs

Name: Ultra Vacuum Mixer 10 Kgs
Brand: SHREE BHAGWATI MACHTECH (I) PVT. LTD.
Price: 900000 INR
Availability: InStock

Price 900000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ultra Vacuum Mixer 10 Kgs Specification

Phase
Single or Three Phase

Features
Vacuum mixing, programmable settings, jacketed vessel, variable speed

Noise Level
65 dB

Usage & Applications
Mixing, kneading, dispersing under vacuum for pharmaceuticals, chemicals, adhesives, and cosmetics

Frequency
50/60 Hz

Temperature
Ambient to 200C (model dependent)

Type
Ultra Vacuum Mixer

Material
Stainless Steel / Mild Steel depending on requirement

Capacity
10 Kgs

Computerized
Optional / Available with PLC Control

Control Mode
Automatic / Manual

Voltage
220V / 380V / 415V

Power
2 kW - 5 kW

Weight (kg)
Approx. 350-450 kg

Dimension (L*W*H)
Approx. 1200 mm x 800 mm x 1500 mm

Color
Standard Industrial Grey (customizable)

Compliance
GMP/CE compliant

Vacuum Level
Up to -0.09 MPa

Safety Systems
Emergency stop, interlock protection

Service Support
Onsite/Remote technical support available

Discharge Method
Bottom valve/manual/automatic

Jacketed Vessel
Available for heating/cooling

Mixing Speed
0-60 rpm (variable speed)

Power Source
Electric

Display Interface
Touchscreen HMI (optional)

Drive System
Heavy-duty geared motor

Agitator Type
Double planetary or customized

Ultra Vacuum Mixer 10 Kgs About

Last Chance to access the formidable Ultra Vacuum Mixer 10 Kgs-an unmatchable asset for industrial mixing. Towering in flexibility, it operates at a variable speed of 0-60 rpm, supported by a heavy-duty geared motor and an optional touchscreen HMI for seamless control. Its highlighted features include a GMP/CE compliant, jacketed vessel for precise thermal regulation, and customized agitator options. Emergency systems and interlock protection ensure safety. The robust mixer is ideal for pharmaceuticals, chemicals, adhesives, and cosmetics, delivering efficient, efficient vacuum mixing. Onsite and remote support included.

Key Advantages and Industrial Applications

The Ultra Vacuum Mixer 10 Kgs excels in blending, kneading, and dispersing under vacuum, providing a formidable solution for industries requiring precise and homogeneous mixing. Its programmable controls and jacketed vessel ensure temperature stability, making it ideal for plants producing pharmaceuticals, chemicals, adhesives, and cosmetics. The system's unmatchable flexibility allows for integration in high-demand production lines, enhancing productivity while reducing operational risks in sensitive applications.

Sample Policy, Supply Capability, and Certifications

Our sample policy ensures customers can evaluate the Ultra Vacuum Mixer before large orders-shipped goods are carefully managed for prompt arrival. With a supply ability suited for distributors, exporters, and manufacturers, delivery is organized efficiently to meet your project timelines. Each mixer is delivered with full GMP/CE certification, guaranteeing compliance and safety standards. Comprehensive technical support is available to ensure proper installation and continued operation from shipment to ongoing production.

FAQ's of Ultra Vacuum Mixer 10 Kgs:

Q: How is the Ultra Vacuum Mixer 10 Kgs operated and controlled?

A: The mixer can be operated in manual or automatic modes, with control available through a touchscreen HMI or optional PLC interface, offering programmable settings for a range of industrial applications.

Q: What industries benefit most from the Ultra Vacuum Mixer 10 Kgs?

A: Industries such as pharmaceuticals, chemicals, adhesives, and cosmetics use this mixer for its superior ability to mix, knead, and disperse materials under controlled vacuum conditions.

Q: When should the jacketed vessel be utilized in the mixing process?

A: The jacketed vessel is recommended when precise temperature control is needed for heating or cooling materials during mixing, which is essential for sensitive applications and maintaining product quality.

Q: Where can this mixer be installed, and are customizations possible?

A: The Ultra Vacuum Mixer 10 Kgs is suitable for installation in factories or plants requiring hygienic and robust mixing solutions. Customizable features are available to match specific process and structural requirements.

Q: What is the process for receiving shipped goods and are certifications provided upon arrival?

A: Upon shipment, mixers are delivered with all necessary documentation, including GMP and CE certifications. Technical support is available to ensure seamless integration and operational setup at your facility.
