ROPP Cap Sealing Machine

About ROPP Cap Sealing Machine

Cap Sealing Machine Description:

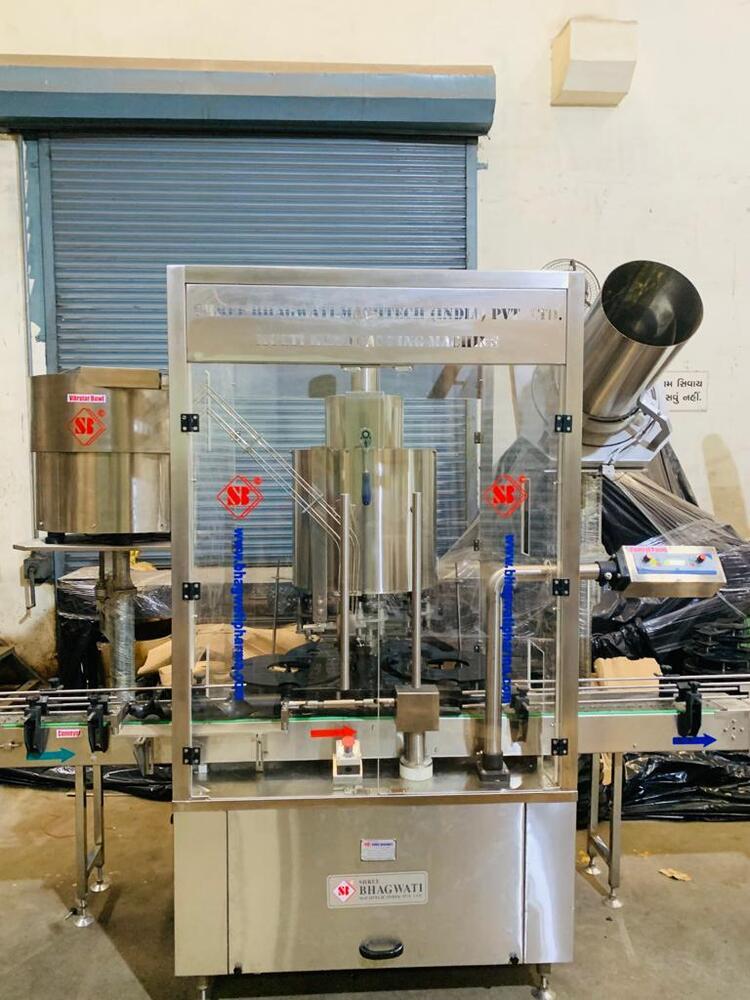

BHAGWATIs Automatic Aluminum Cap Sealing Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.

Cap Sealing Machine Operation :

The feed container moving on conveyor belt are feed into an in-feed star wheel through In-feed worm, star wheel bringing the container below the sealing head in the subsequent indexing part, mean while the vial pickup a cap from the delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of sealing. Cap Sealing Machine Technical Specification : Model SBCS-100V SBCS-150V SBCS-200V Output / Hour* 3600 to 6000 vials. 3600 to 9000 vials 4000 to 12000 vials Direction of Movement Left to Right No. of sealing head 4 Nos. 6 Nos. 8 Nos. Electrical Specification Main MotorCap Feeding Bowl 1.5 HP / 415 Volts / 50 Hz. 2HP / 415 Volts / 50 Hz. 0.25 HP / 415 Volts / 50 Hz. Height of Conveyor 860 mm to 910 mm. * Depends on vial size, cap size and type of cap. We can supply as per customer requirements. With help of change parts. Cap Sealing Machine Salient Features : No container no cap arrangement. S.S. elegantly matt finished body. Single motor synchronizes conveyor, star wheel, platform turret. Adjustable height of conveyor belt, to align with other machine of the line. Sealing pressure can be varied to suit different gauges and size of caps. Specially designed hopper is provided to increase storage capacity of bowl. Low noise level, low power consumptions. Self-lubricating UHMW- PE guide profile for low friction wears surface, smooth and noiseless conveying. Drain tray around the machine platform. SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion. Synchronized A/C drives to synchronize, Conveyor, Star wheel and Platform turret capping bowl. Universal coupling for quick and easy setting of In-feed worm. Adjustable vial height gauge for easy and quick setting. Note: Dimensions & Technical Details are subject to change as per customers' requirement without any further notice.

Advanced Material for Longevity

Crafted with stainless steel and specialized alloys, this sealing machine offers exceptional resistance against rust and wear. These materials ensure that the equipment remains reliable and maintains hygiene standards essential for industrial packaging applications, especially in environments that demand regular cleaning.


Flexible Voltage Options for Versatile Use

Thanks to its adaptable voltage requirements, ranging between 220-415V, the ROPP Cap Sealing Machine easily integrates into various industrial settings. This flexibility allows manufacturers across multiple industries to tailor the machine to their specific energy infrastructure, without sacrificing performance.


User-Friendly Control System

Equipped with a Human Machine Interface and frequency speed control, the machine ensures seamless operation. Automation further simplifies the capping process, allowing operators to adjust performance parameters easily for consistent and efficient output.
