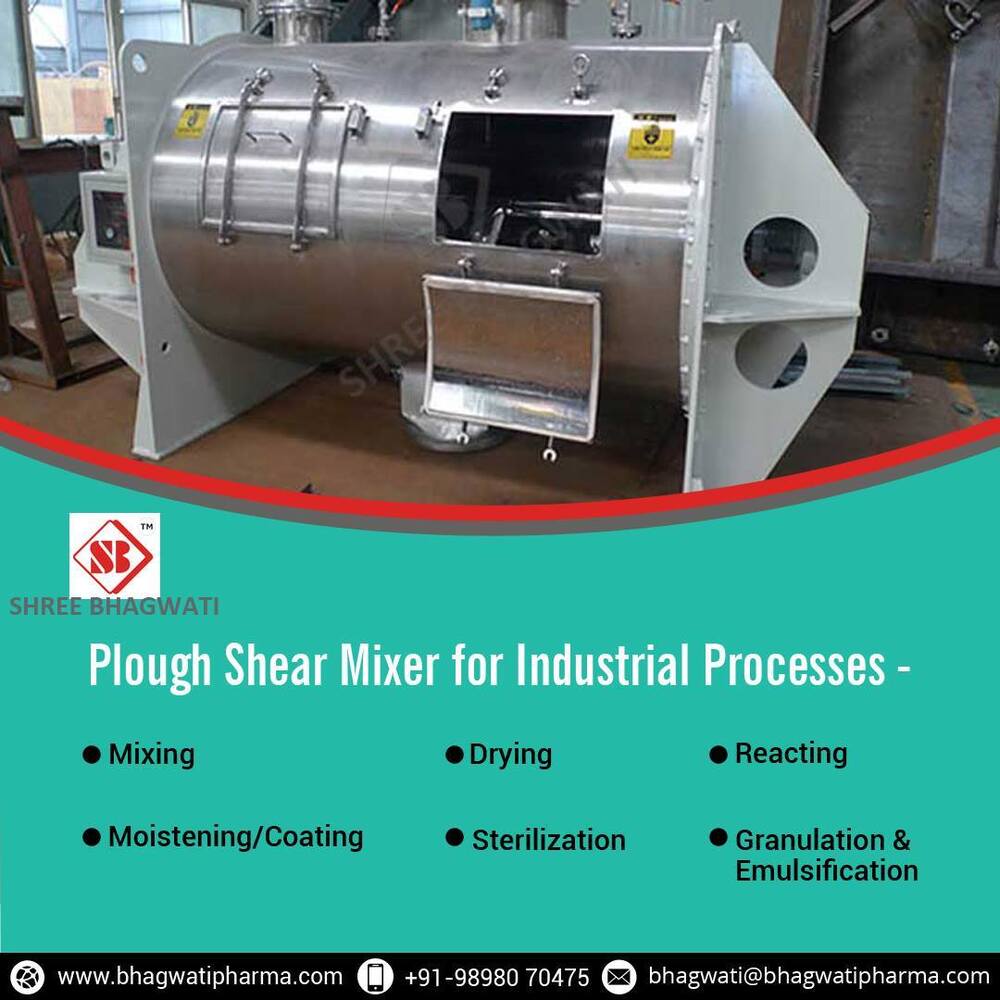

Jacketed Vacuum Rated Plough Shear Mixer Dryer - 1000 Ltr

Name: Jacketed Vacuum Rated Plough Shear Mixer Dryer - 1000 Ltr
Brand: SHREE BHAGWATI MACHTECH (I) PVT. LTD.
Price: 4500000 INR
Availability: InStock

Price 4500000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Jacketed Vacuum Rated Plough Shear Mixer Dryer - 1000 Ltr Specification

Heat Source
Jacketed - Steam / Hot Oil / Water

Fuel Type
Electric / Steam / Thermal Oil

Power
15 HP

Power Consumption
Approx. 11 kW

Material
Stainless Steel 304/316

Voltage
415 V, 3 Phase, 50 Hz

Temperature
Up to 250C

Technology
Vacuum Rated Plough Shear Mixing and Drying

Dimension (L*W*H)
Approx. 2600 x 1200 x 1700 mm

Discharge Valve
Pneumatically Operated

Design Pressure
Full Vacuum to 3 Bar

Agitator Type
Plough Shear with Chopper Blades

Shaft Sealing
Mechanical Seal / Gland Packing

Drive Type
Helical Gearbox with Motor

Batch Time
30-90 Minutes (depending on material)

Safety Features
Overload Protection, Emergency Stop, Pressure Relief Valve

Surface Finish
Mirror/Matte Polished Internal

Application
Pharmaceutical, Chemical, Food, Pigment, Dyestuff Processing

Load Type
Batch Type

Shell Thickness
10-14 mm (Depending on Size)

Vacuum Level
Up to 710 mm Hg

Control System
Auto/Manual with PLC Option

Working Capacity
1000 Liters

About Jacketed Vacuum Rated Plough Shear Mixer Dryer - 1000 Ltr

Experience the extraordinary efficiency of our Jacketed Vacuum Rated Plough Shear Mixer Dryer - 1000 Ltr, a top-rated solution for diverse industries. This marvelous equipment delivers a fresh approach to mixing and drying with pivotal features like a working capacity of 1000 liters and a bargain batch time of 30-90 minutes. Engineered with a pressure range from full vacuum up to 3 Bar and a vacuum level up to 710 mm Hg, its superior stainless steel build ensures reliability. The mixer is equipped with plough shear agitators, mirror/matte polished interior, and sophisticated safety systems, making it ideal for pharmaceuticals, chemicals, food, pigments, and dyestuffs. Designed for maximum performance, it includes an advanced control system and helical gearbox, promising versatile and efficient batch processing every cycle.

Expansive Applications & Commercial Versatility

The Jacketed Vacuum Rated Plough Shear Mixer Dryer - 1000 Ltr demonstrates remarkable adaptability across pharmaceutical, chemical, pigment, food, and dyestuff industries. Its robust stainless steel construction facilitates safe handling of various materials, ensuring batch uniformity and purity. Marvelous chopper blades and plough shear agitators allow adaptable mixing, making it essential for commercial-scale operations that demand precise process controls, high efficiency, and reliable, consistent outcomes regardless of material complexity.

Sample Availability, Superior Packaging & Flexible Payment

Take advantage of our special sale price and lowest price in the domestic market when ordering the Mixer Dryer. We offer samples for evaluation to ensure it matches your needs perfectly. Packaging is meticulously managed to ensure damage-free delivery, while flexible payment terms make procurement simple and secure. As an esteemed distributor, exporter, manufacturer, and supplier across India, we commit to providing outstanding service throughout every transaction.

FAQ's of Jacketed Vacuum Rated Plough Shear Mixer Dryer - 1000 Ltr:

Q: How does the plough shear agitator enhance the mixing and drying process?

A: The plough shear agitator, combined with chopper blades, ensures uniform mixing and efficient drying by creating intense movement within the vessel, reducing batch times and improving product homogeneity.

Q: What materials can be processed in the Jacketed Vacuum Rated Plough Shear Mixer Dryer?

A: This mixer dryer is suitable for a wide range of materials, including pharmaceutical powders, chemicals, food ingredients, pigments, and dyestuffs, delivering consistent results across varied applications.

Q: When should I opt for vacuum-rated plough shear technology for material processing?

A: Vacuum-rated technology is pivotal when handling sensitive, heat-labile, or volatile materials that require gentle, controlled drying without exposure to air or excess heat, increasing yields and ensuring quality.

Q: Where can this mixer dryer be installed and utilized?

A: It is designed for commercial and industrial use, suitable for installation in processing plants of pharmaceutical, chemical, food, pigment, and related industries seeking advanced, large-capacity batch processing.

Q: What are the benefits of the pneumatic discharge valve and overload protection features?

A: A pneumatically operated discharge valve ensures rapid, residue-free material release, while overload protection and emergency stop systems safeguard both the machine and operator during extended operation.
