Volummetric Eight Head Liquid Filling Machine

About Volummetric Eight Head Liquid Filling Machine

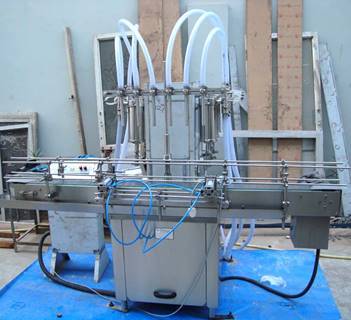

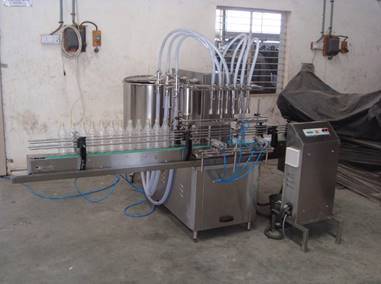

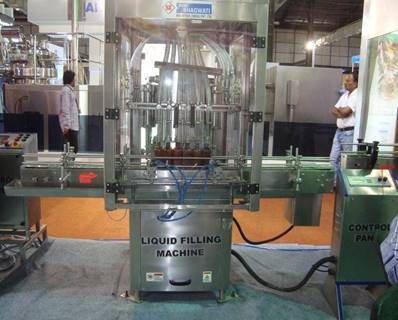

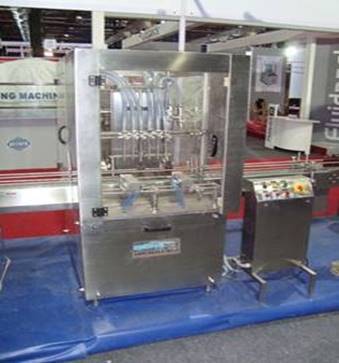

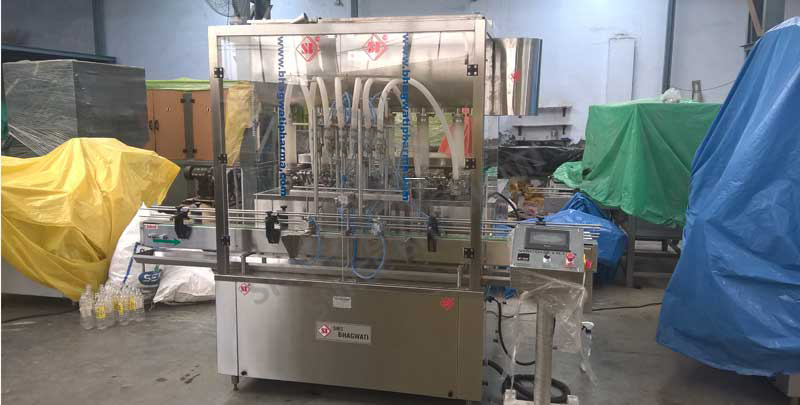

Volummetric Eight Head Liquid Filling Machine

Description : Automatic Volumetric Pesticides Bottle Filling Machine work on volumetric principle with diving nozzles. The pesticide filling machine is made compact, versatile and enclosed in stainless steel elegantly matt finish body, of S.S Slat Conveyor, Reciprocating Nozzle with self-cantering devices & SS Syringe. No container the main drive of the machine and conveyor drive consist of A/C Motor with synchronized variable A/c Frequency drive. Operation : Containers moving on S.S. Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stopper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for cantering of container below nozzles, to avoid spillage of Pesticides on container. To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.

Technical Specification : Pesticide Filling Machine Model SBLF - 200 Output/Hour 5000 to 12000* Depends on size, shape and Neck Dia of container, Fill volume and nature of Pesticides etc. Direction of Movement Left to Right Number of head/syringe 8 Nos. Fill Size 5 ml to 1000 ml Electrical Specification Main Machine 1.5 HP /415 Volts / 50 Hz. (2 HP if maximum volume is 1000 ml in single doze) Height of Conveyor 860 mm to 910 mm adjustable. Machine Dimension 2135 mm (L) x 1150 mm (W) x 1610 mm (H) Case Dimensions 2350 mm (L) x 1350 mm (W) x 1650 mm (H) Net Weight 850 Kg Gross Weight 1100 Kg Change parts required (A) Syringes. (B) Nozzle (C) Inlet & outlet hose pipe

Input Specifications: Container Neck Diameter Minimum 22 mm Container SizeNumber of head/syringe Round Shape (A) Ë 28 mm to Ë 100 mm (B) Height 58 mm to 240 mm (Height option for other bottle height available) Flat / Square (A) 15 mm to 100 mm (Length) (B) 10 mm to 50 mm (Width) (C) 58 mm X 240 mm (Height option for other bottle height available)

* Depends on size, shape and Neck Dia of container, Fill volume and nature of liquid etc. Can be supplied as per customer requirements. With help of change parts.

Salient Features : ± 1% Filling accuracy on single dose. No bottle No filling system. Rigid vibration free construction for trouble free performance. S.S. Elegantly matt finished body. Elegant and easy control panel for total control on operation. Minimum change overtime, from one size to another container or fill size. Self lubricating UHMW-PE guide profile for SS slat chain provides low friction wear surface, smooth and noiseless conveying. Drip tray under the conveyor. Pneumatic bottle stopping arrangement. Safety guard for conveyor gear box, motor and pneumatic cylinders. MCB for over load protection, and prevention against short circuit. Nitrogen flushing system provided (Pre or Post) as required by customer.

Optional Features : Automatic chain washing system for conveyor belt. In-built pre-inspection. Acrylic cabinet. Acrylic cover on conveyor. Nitrogen Flushing. Float tank (Holding tank) with or without stirrer. Utility Requirement : Electrical Supply: Three Phase + Neutral + Earthing Electrical Load: 2 KW Air Pressure: 6 bar pressure 0.5 CFM

Precision and Efficiency in Liquid Filling

This machine utilizes volumetric technology and eight synchronized filling heads to deliver accurate filling for bottles of varying sizes. The frequency speed control enables flexible operation, ensuring efficient production runs for industries like pharmaceuticals, chemicals, and food processing. Its automatic grade streamlines workflow and increases throughput.


Eco-Friendly Construction and Robust Build

Fabricated entirely from high-grade stainless steel, the filling machine ensures durability and hygiene. Its eco-friendly design aligns with modern sustainability standards, while the electric drive system promotes energy-efficient functioning. The Human Machine Interface offers user-friendly interaction for settings adaptation and maintenance.
