Self Adhesive Vial & Bottle Labelling Machine

Price 800000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Self Adhesive Vial & Bottle Labelling Machine Specification

Material
SS

Computerized
No

Automatic Grade
Automatic

Control System
Human Machine Interface

Drive Type
Electric

Power Source
Electric

Voltage
220-415 Volt (v)

Feature
High Performance, ECO Friendly

Warranty
1 year

Self Adhesive Vial & Bottle Labelling Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
30 Units Per Month

Delivery Time
4-6 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden Packing Only

Main Domestic Market
All India

Certifications
CE & ISO Certified

About Self Adhesive Vial & Bottle Labelling Machine

Shree Bhagwati Pharma Machinery India's market leader in design and manufacture of self adhesive Labelling machinery for the packaging industry.

Since Shree Bhagwati Pharma Machinery is pioneered the development of Labelling machinery and its technology has grown to be a market leader working with many blue chip companies world wide.

Our machinery is sold within many varied industries such as: pharmaceutical, toiletries, cosmetic, beverage and food etc.

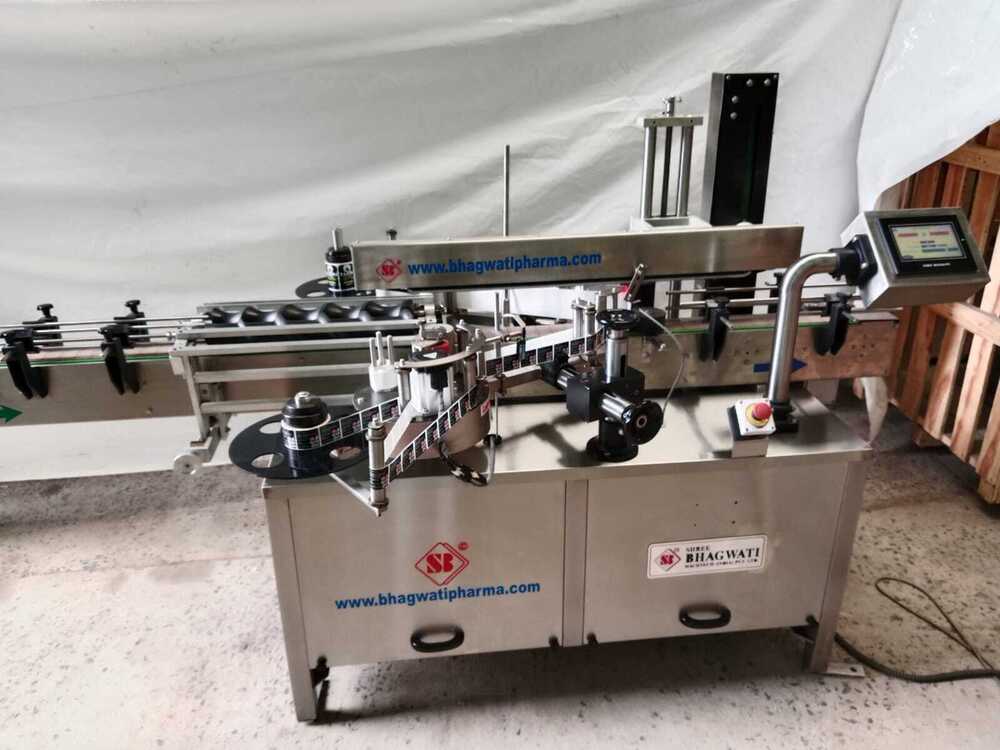

SBSL-300 Automatic Self Adhesive Vertical Labeling Machine is used for labeling of round container which are previously filled and sealed. No change parts are required for change over of container size.

Machine conveyor will receive container from in feed turntable, it will be separated by the feeding roller assembly to maintain the pre determined space between the two container according to the label length and container diameter. Label is placed on the container immediately when it will be sensed by the container sensor, it ensures instant adhesive of label's edge. Then it passes through the pressing unit resulting in precise registration and crease-free application.

It does not require any change parts for change in container diameter or label sizes. It can handle the diameter range from 20 mm to 90 mm and label height from 10 mm to 115 mm, change overcan be done with in few minutes, label height from bottom can be also adjustable for different kind of containers .

A total CGMP model

High Production Speed up to 300 containers/min and other higher model can give up to 300 containers / min.
S.S. 304 Construction.
Accurate label placement.
Micro processor Control System.
Full Pharmaceutical & Packaging security package system.
Secondary Pressing unit.
Any kind of printing device can be accommodated with machine.
Imported Gear Motor for Conveyor & Pressing unit.
Imported Gear Box for Conveyor & Pressing unit.
A.C.Frequency Drive for main drive.
In built Speed Indicator & Counter.
Stepper Motor with Controller.
Imported Sensor for Label & Container.

a) Specially designed machine useful to Apply labels on Round Products (full body or partial Labeling)as well as on Flat / Oval products (Single side labeling)

b) Any type products can be accommodating like Aluminium, Glass, Plastic & etc.

c) No change parts required due to special designed mechanism

Model	SBSL-300
Label Height	8mm to 90 mm
Standard Label Length	12 mm to Unlimited
Core Dia	300 / 400 mm
Core Dia	75/76 mm
Electrical	220 VAC, Single Phase, 50/60 Hz, 1.2 Amp, 0.5 Kw
Speed*	Upto 300 labels per minute Conveyor Height 856-960 mm
Overall Dim (LxWxH)	1825x715x1550 mm
(Depending on product and label size)

Efficient and Reliable Labeling

With its stainless steel construction and automatic grade operation, this labelling machine offers long-term reliability and minimal maintenance. Its advanced control systems, including HMI and PLC options, allow for accurate setting and monitoring, ensuring consistent label placement and production output.

Flexible Capacities and Voltages

The machines adaptable capacity range of 30-300 Kg/hr suits both small-scale and large-scale labeling needs. Voltage specifications can be tailored between 220 and 415 volts to fit diverse operational environments, providing flexibility for users across various sectors.

FAQs of Self Adhesive Vial & Bottle Labelling Machine:

Q: How does the Self Adhesive Vial & Bottle Labelling Machine operate?

A: This machine automatically applies labels to vials and bottles using an electric drive system. It is managed through a Human Machine Interface or PLC control, ensuring precise and efficient label placement.

Q: What materials are used in the construction of the labelling machine?

A: The machine is primarily constructed with high-quality stainless steel (SS), offering strength, durability, and corrosion resistance essential for industrial environments.

Q: When should I perform maintenance on the machine?

A: Routine maintenance is recommended in accordance with the manufacturers guidelines, typically after a set number of operating hours, to ensure optimal performance throughout the one-year warranty period.

Q: Where can this labelling machine be installed?

A: It can be installed in facilities across India and internationally, wherever electric supply matches 220-415V, and is suitable for pharmaceutical, food, or chemical industries requiring vial and bottle labeling.

Q: What is the process for adjusting voltage settings?

A: Voltage settings are configured prior to installation based on customer requirements. It is important to ensure that the sites available voltage (220-415V) matches the machines specification before operation.

Q: What are the advantages of using this automatic labeling machine?

A: The machine offers high performance, eco-friendly operation, accurate label placement, and ease of use. Its automatic function reduces labor, improves consistency, and increases production efficiency.

Q: How can I benefit from the warranty provided?

A: With a one-year warranty, users gain peace of mind regarding potential defects or technical issues. Warranty services include repair or replacement for eligible parts and assistance from authorized technicians.
