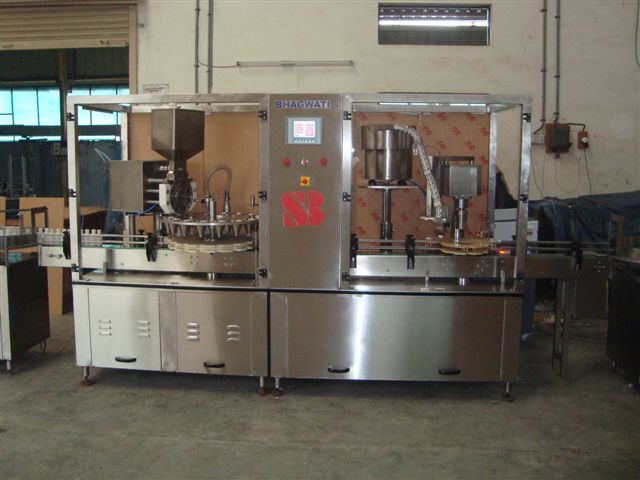

Rotary Dry Syrup Powder Filling Machine

About Rotary Dry Syrup Powder Filling Machine

Automatic 12 Head or 16 Head Rotary Dry Syrup Powder Filling Machine with fill range upto 30gms. OR upto 65gms

Description : The Automatic High Speed Rotary Dry Syrup Powder Filling Machine Model SBPF-120R is suitable for Glass, Plastic, PET, HDPE, and LDPE Bottles with maximum speed of 100 Bottles per minute depending on Powder Fill Volume, Type of Powder, Bottle Diameter and Bottle Neck Diameter. Machine in Stainless Steel Finish with heavy duty frame structure with S.S, Clading. All parts coming in contact with Powders are made from SS316 Materials as well as HDPE Funnels. The Machine works on proven time tested Vacuum and Air Systems to Fill powder in Bottle achieving higher speed and higher accuracy. Machine with unique Bottle Lifting and Neck Holding system avoid spillage of powder on bottle shoulder, neck and body keeps bottle clean and also avoid wastage of powder. Machine with complete synchronization of Bottle Infeed Star Wheel, Powder Wheel movement and outfeed Starwheel for smoother operation. Machine with Rotary Bottle Moving system ensures very high speed powder filing through independent moving funnel along with bottles for greater speed and performance without compromising speed and fill accuracy. Machines with unique vibratory system inside the funnel helps filling of semi free flow type powder at higher speed.

Salient Features : No Bottle - No Fill System Rotary Bottle Movement System with Rotary Funnel System Funnel with Unique Vibratory system for filling semi free flow powder at higher speed All contact parts with easy removal system for Cleaning / Auto Claving / Sterilization Machine construction in SS304 material Filling Accuracy of +/- 1 to 2% depending on powder at controlled humidity below 30% Rh Automatic Infeed and Exit of Bottles through Star Wheel System No Bottle at infeed conveyor - Automatic Machine on/off system Low Air - Machine Stop System Low Vacuum - Machine Stop System Toughened Glass Safety Cabinet Blower for dust extraction

Technical Details: Model Bottle Diameter Upto 85mm*, Square or Rectangular bottles can be used Bottle Height 100mm* Maximum Fill Range 5gms. To 500gms. In Single Dose with the help of change parts for different fill volume Fill Accuracy +/- 1 to 2% Depending upon the Powder, under the controlled level of Humidity Humidity Below 30% Rh required on machine to be arrange by customer Electrical 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive Power 2.0 H.P. For Machine and 3.0 H.P. For Vacuum Pump Compressed Air Filtered, Oil Free 2kg/cm2 provided by customer only Vacuum 28 Hg. @ 300 LPM, provided by Customers only, 500LPM recommended Conveyor Height 815-940 mm Overall Dimensions 2000 mm (L) x 1200 mm (W) x 1800 mm Speed Max. 100 Bottles per minute depending on Bottle Size, Bottle Neck Diameter, Type of Powder and Fill Volume

* Depends on Container size & container characteristics. We can supply as per customer requirements.

Precision Filling for Enhanced Productivity

Engineered for accurate dosing, the Rotary Dry Syrup Powder Filling Machine significantly reduces wastage and ensures consistency in every batch. Its adjustable capacity and compatibility with varied voltage requirements make it a reliable choice for pharmaceutical and industrial applications. The automatic system keeps production seamless.


Sturdy Stainless Steel Construction

Manufactured from top-grade stainless steel (SS), the machine stands out for its corrosion resistance and long-lasting durability. Its hygienic design aligns with industrial standards, making it ideal for environments where cleanliness and reliability are essential.


User-Friendly Control & Operation

Equipped with either a PLC or Human Machine Interface, the machine assures simple yet powerful control over the filling process. This ensures effortless adjustments and swift changeovers, allowing operators to achieve maximum efficiency with minimal training.
