About Eight Head Twin Track Liquid Filling Machine

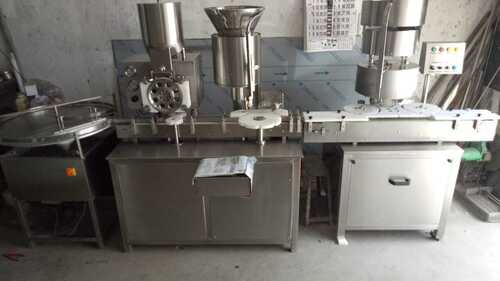

Eight Head Twin Track Liquid Filling with Rubber Stoppering Machine for Vials SBVFS 250

Shree Bhagwati  Pharma  introduces highest grade pharmaceutical machines, designed as per GMP standard, incorporating latest concepts with A.C frequency drive for injectable liquids in sterile operation compact machine, elegant and functionally superior, that have found wide acceptance in the pharmaceutical, chemical and allied industries. Shree Bhagwati Pharmas compact Automatic Liquid Vial Filling and Stoppering Machine is in pleasing matte finished stainless steel. The basic unit consists of turntable, S.S. Stat conveyor belt, unique  co. eccentric pre-gassing, filling and post-gassing S.S. 316 nozzles highly efficient and precision built S.S. 316 Syringes, non- toxic synthetic rubber tubings, easy reach compact panel and with no container, no stopper , no filling system. The minimal distance between filling and stoppering units reduces the risk of contamination.  The machines are designed for operation in a sterile area and for use under laminar flow protection.  The un-scrambler itself has been redesigned to eliminate dead ends and difficult-to-clean spots.

Salient Features : All exposed parts are of S.S. 304, matt finished to avoid any reflection for achieving the most concentration and efficiency of the operator. Co-Eccentric nozzles allows very quick and precise setting and making unit compact and manageable. Crafted S.S. holders, lapped glass as well as S.S. syringes and piston and precision built valve system for achieving very high accuracy in fill size and drip proof performance.  Precise setting and accuracy can be easily adjusted on the machine itself. No vial- No stoppers - No filling system. Easy reach compact panel provides ease and operation. Minimum change over time, from one size of container or fill size to another. Each important individual part required for autoclaving / sterilization can be removed easily. There is no need to shift the whole machine every now and then. Machine height can be adjusted to match with other machines so as to synchronize with each other efficiently. Can run dry and wet rubber stoppers and supplied with liquid collecting tray. Suitable for Food and Beverages, Chemicals, Pharmaceuticals, Cosmetic applications and other allied companies / industries.

Technical Specification Description Model SBVFS 250 Heads 8 Heads Output Per Hour 15000 Vials (Depending on the nature of liquid and its fill size or volume) Power Characteristics 440 V 3 Phase 50 Hz 4 Wire System With Ac Frequency Drive Input (container dia. And height) 24 mm TO 50 mm / 75 mm Max. Rubber Stopper 13 / 20 mm Dry or Wet Fill Size 02 ml TO 50 ml (With Help Of Extra Change Parts) Filling Accuracy + 1% ON Single Dose Net weight 600 Kgs. Max. T1 900 mm (Separate) T2 900 mm (Separate) Length (L) 2000 mm Width (W) 900 mm Height (H) 850 mm Height (H1) 1400 mm



Versatile Performance for Liquid Filling

Engineered for diverse industries, this filling machine handles a variety of liquids with accuracy. Its twin track system and eight filling heads boost productivity and minimize downtime, making it suitable for pharmaceutical, cosmetic, and food applications. The machine seamlessly blends efficiency with user-friendly controls, ensuring consistent results for high-demand operations.


Reliable Engineering Meets Smart Control

Constructed from high-grade stainless steel, the system is resistant to corrosion and easy to clean, meeting strict quality standards. The PLC control provides precise automation, while the computerized interface allows effortless adjustments and monitoring. This combination offers both operational reliability and exceptional flexibility to accommodate your unique production needs.
