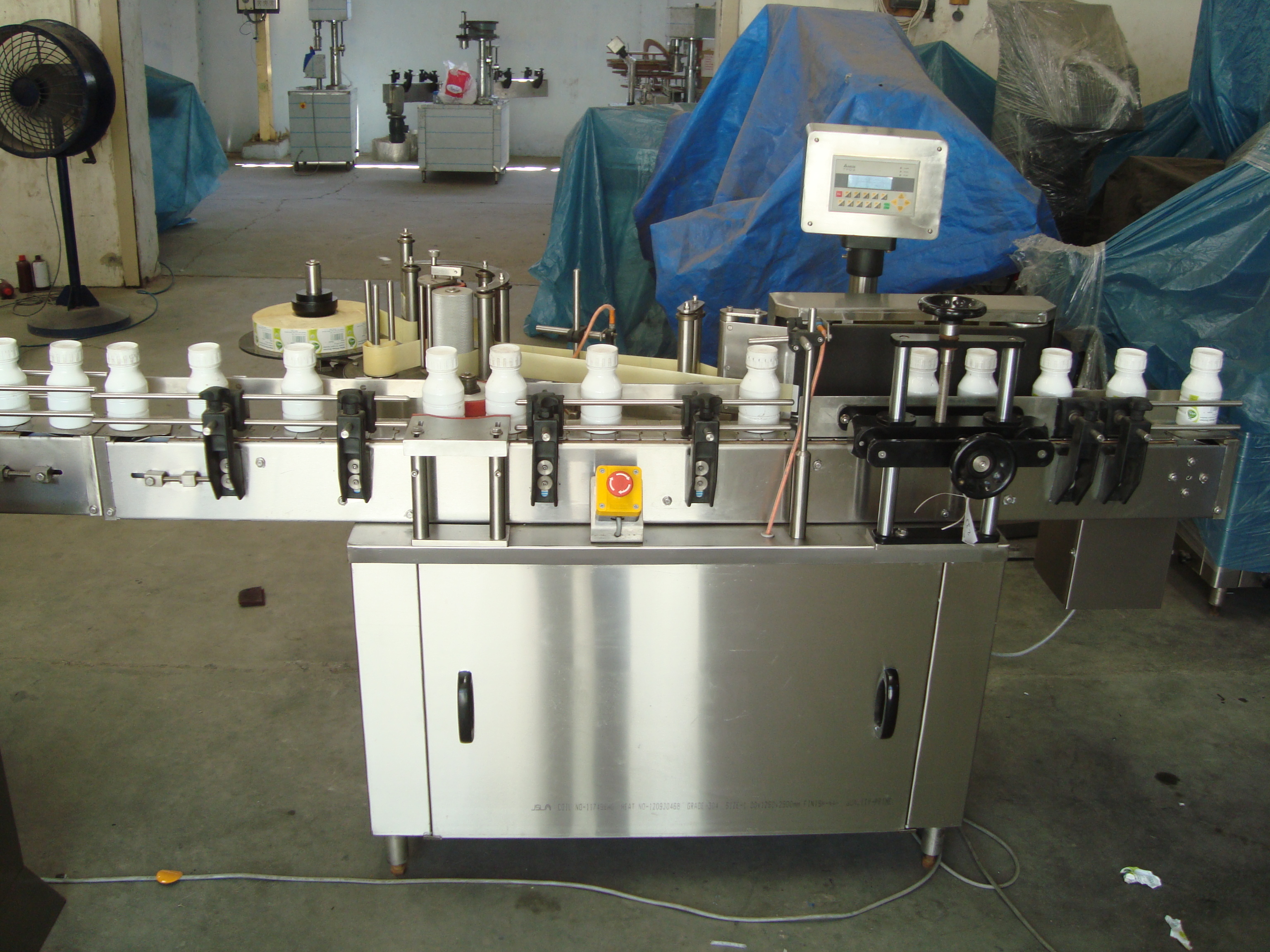

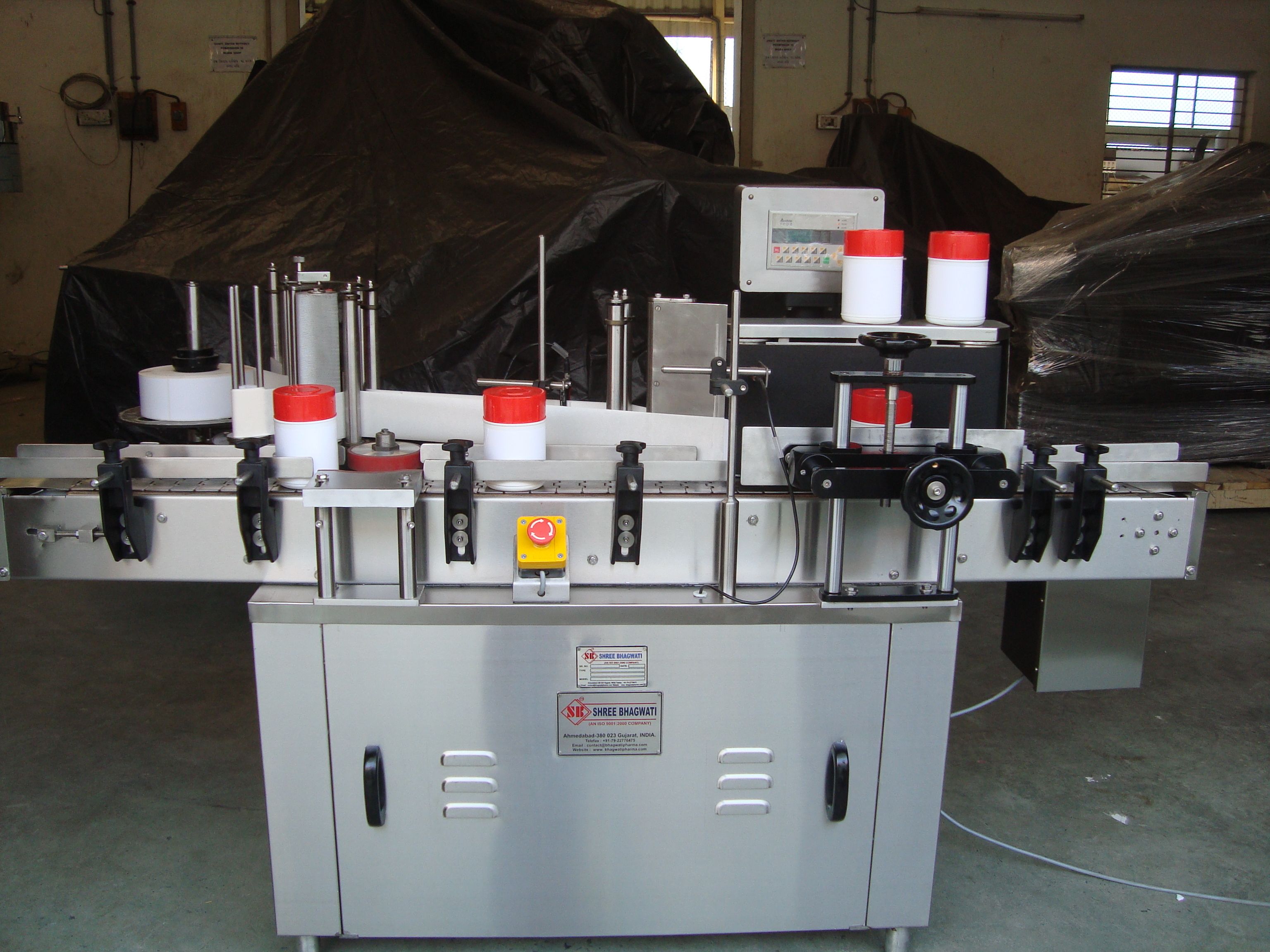

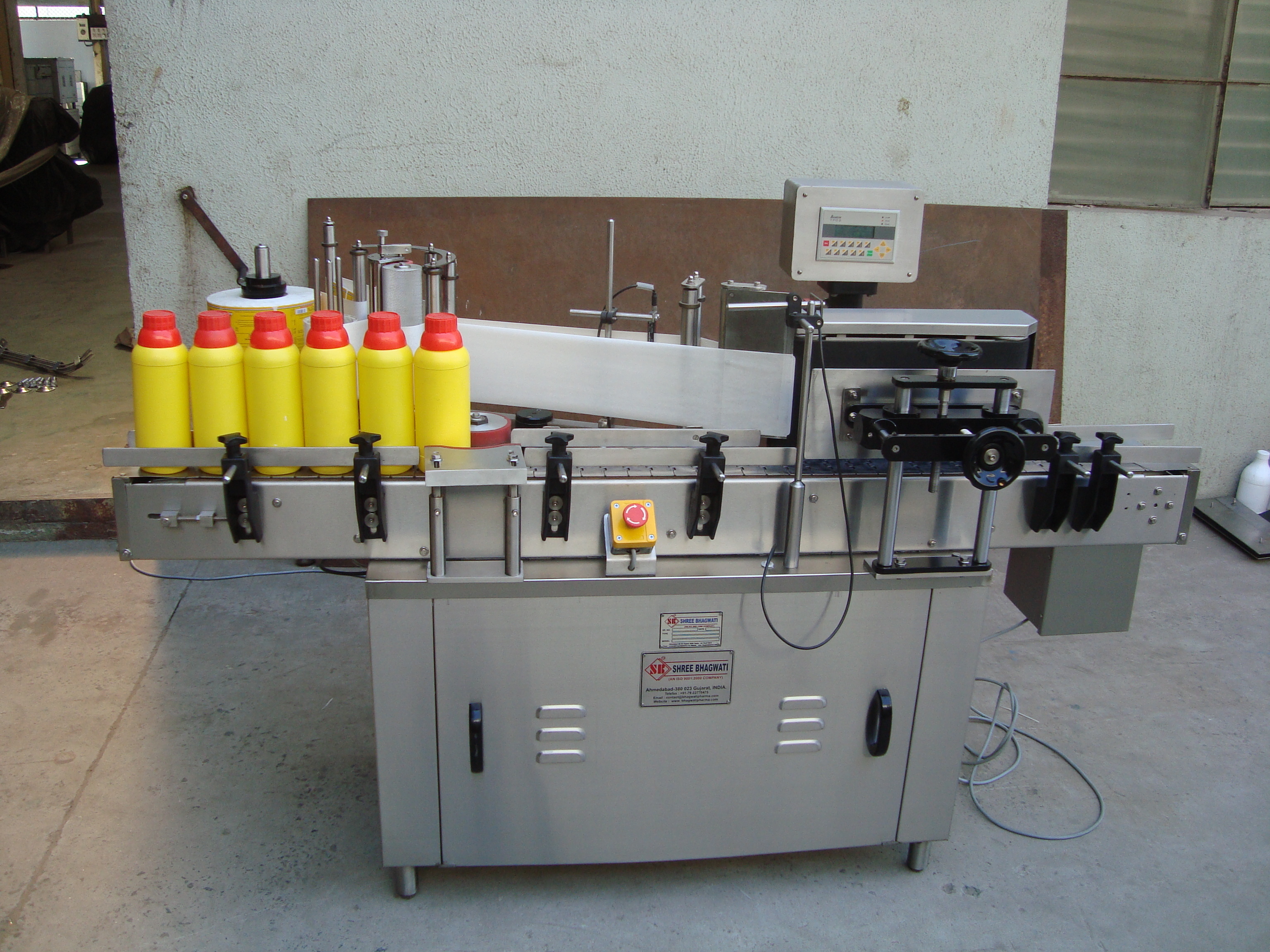

Automatic Self Adhesive Vertical Sticker Labelling Machine

Automatic Self Adhesive Vertical Sticker Labelling Machine

Product Details:

  • Product Type Labeling Machine
  • Material Stainless Steal
  • Application For Sticker Labeling
  • Computerized Yes
  • Automatic Grade Automatic
  • Control System PLC Control
  • Drive Type Electric
  • Supply Ability : 30 Piece Per Week
3 to 10 INR
X

Price And Quantity

  • 1 Piece
  • 300000.00 - 1000000.00 INR
  • 3 to 10 INR

Product Specifications

  • As per the client required
  • 1 year
  • 10 ml 1000 ml
  • High Efficiency, Lower Energy Consumption, Low Noise, ECO Friendly, High Performance, Simple Control, Touch Screen
  • Stainless Steal
  • Automatic
  • Electric
  • PLC Control
  • Labeling Machine
  • Yes
  • For Sticker Labeling
  • As per the client required
  • Electric

Trade Information

  • India
  • 30 Piece Per Week
  • 04 Week
  • Yes
  • Contact us for information regarding our sample policy
  • Wooden Packing Only
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • ISO and CE Certified

Product Description

Adjustment

Label and Container size changes are made by Simple hand wheel adjustments. Within a few minutes. Front Side Guide Rail Adjuster can be Push or Pull according to the Container diameter, Second varies the height of the label placement by hand wheel given below the label Device and Third Sets Label Length According to the Length of label by utilizing a machine controller.



Driving System


Machine Conveyor and pressing belt are driven by a different motor and is controlled by a single A.C. motor controller Device. So that speed of both the device can be increased or decreased. A separate stepper motor drives labelling Device with its controller.


Technical Specification


Model No.

SBSL - 120

Direction of Movement

Left to Right

Output

Up to 30-40 Bottles per minute

(Depending on the size of the bottle or the label length)

Electrical Motor

a) 0.25 HP / 1400 RPM For Conveyor Drive

b) 0.25 HP / 1400 RPM for Pressing Device Drive.

c) 6V DCA‚

Power Characteristics

230 Volts AC 50 Hz.

Construction

Top stainless steel matt finish & S. S. Pipe structure is covered with S.S. 304 sheet.

Compressor  Air

4 to 6 Bars. (Only for printing device)

Label Roll Diameter

Max. 400 mm.

Over All Dimensions

1950 mm (L) 950 mm (W) Adjustable Height 800 to 850 mm.
